DM-M10R800 V2 MIPI module​

Product parameters​

  • model: M101014_BE45_A1
  • size: 10.1 inch
  • resolution: 800x1280
  • display interface: MIPI
  • visual Angle: 160°
  • touch screen: multi-point capacitive touch

Refer to the firmware​

Note: The official firmware name supporting the 10.1 MIPI screen has the word “MIPI”. Below is the link to the firmware:

Compile command​

  • Android 7.1
./FFTools/make.sh -j8 -d rk3399-roc-pc-plus-mipi101-JDM101014_BC45_A1 -l rk3399_roc_pc_plus_mipi101-userdebug
./FFTools/mkupdate/mkupdate.sh -l rk3399_roc_pc_plus_mipi101-userdebug
  • Android 10.0
./FFTools/make.sh -j8 -d rk3399-roc-pc-plus-mipi101-JDM101014_BC45_A1 -l rk3399_roc_pc_plus_mipi-userdebug
./FFTools/mkupdate/mkupdate.sh -l rk3399_roc_pc_plus_mipi-userdebug

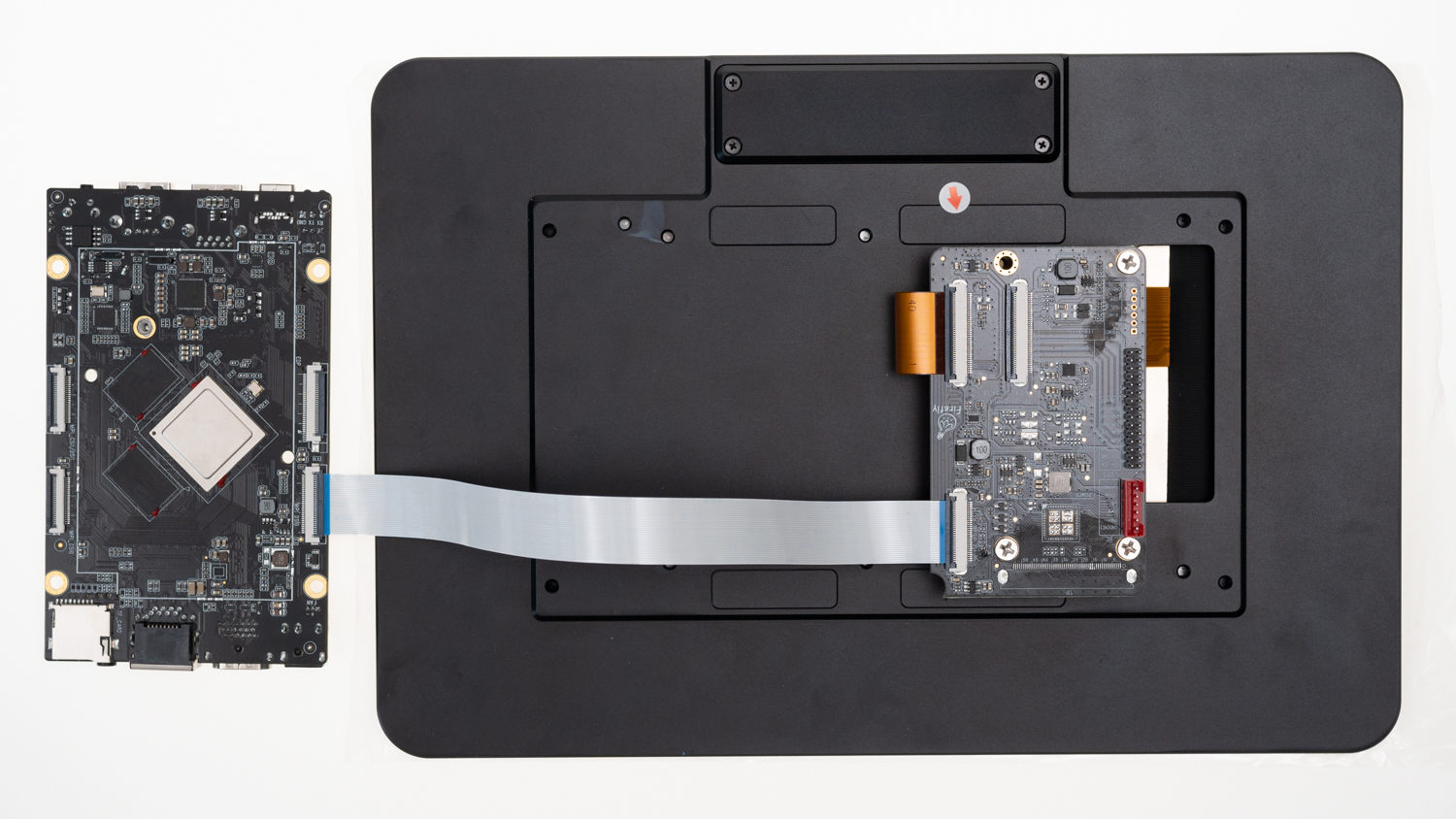

Connection method​

_images/panel_mipi101.jpg

Reference data​

schematic of screen module Datasheet& adapter board
