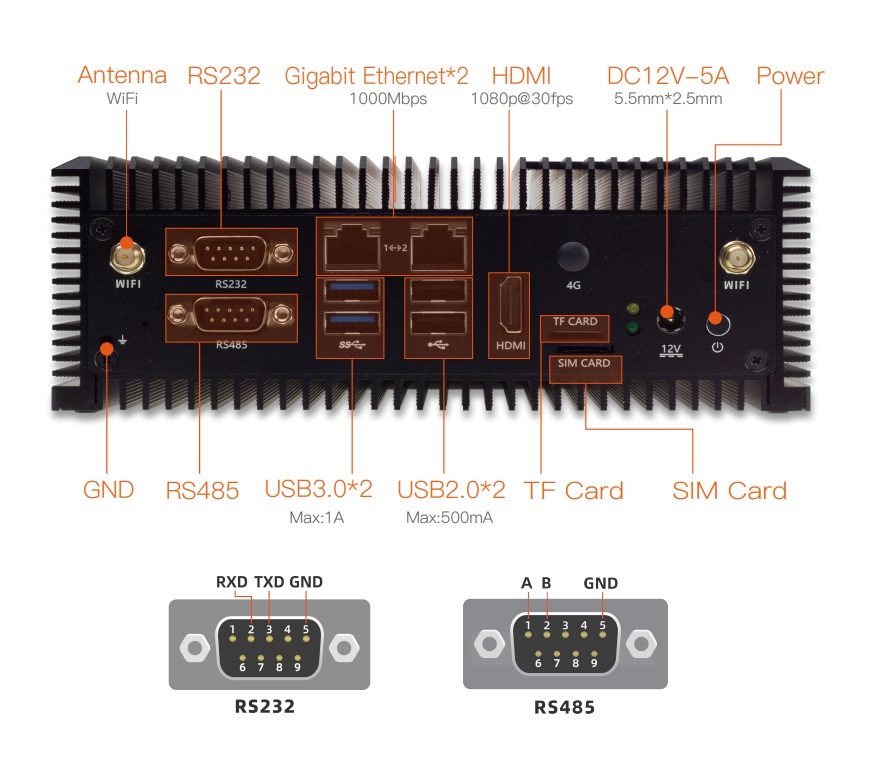

Interface definition

EC-A1684XJD4 FD has rich interfaces, mainly including:

  • 12V Power interface
  • Power button
  • RS232
  • RS485
  • 1000Mbps Ethernet x 2
  • USB 3.0 x 2
  • USB 2.0 x 2
  • HDMI
  • TF card slot
  • SIM card slot
  • BT antenna
  • WIFI antenna x 2
  • 4G antenna

_images/EC-A1684XJD4-FD-interface.en.jpg

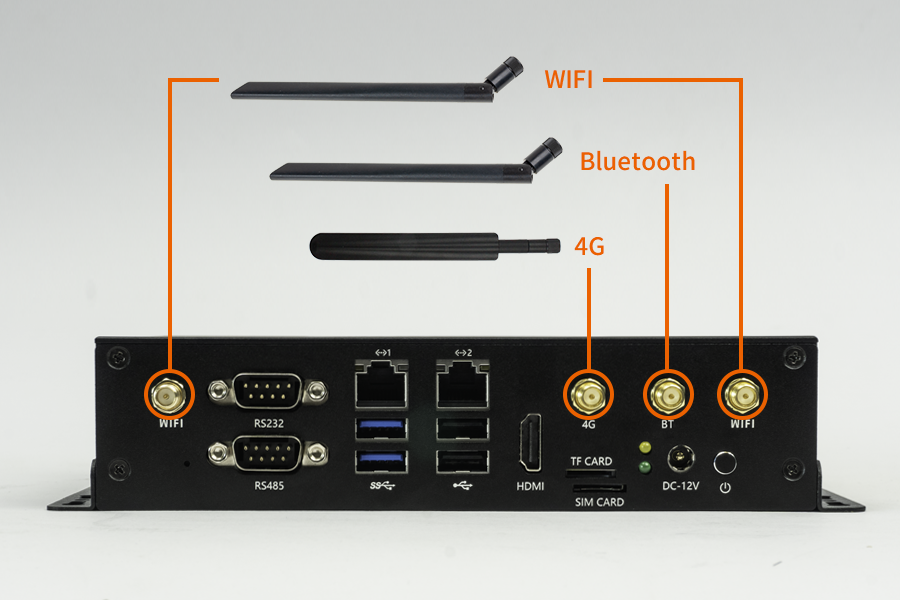

Antenna Connections​

_images/antenna_connection.png

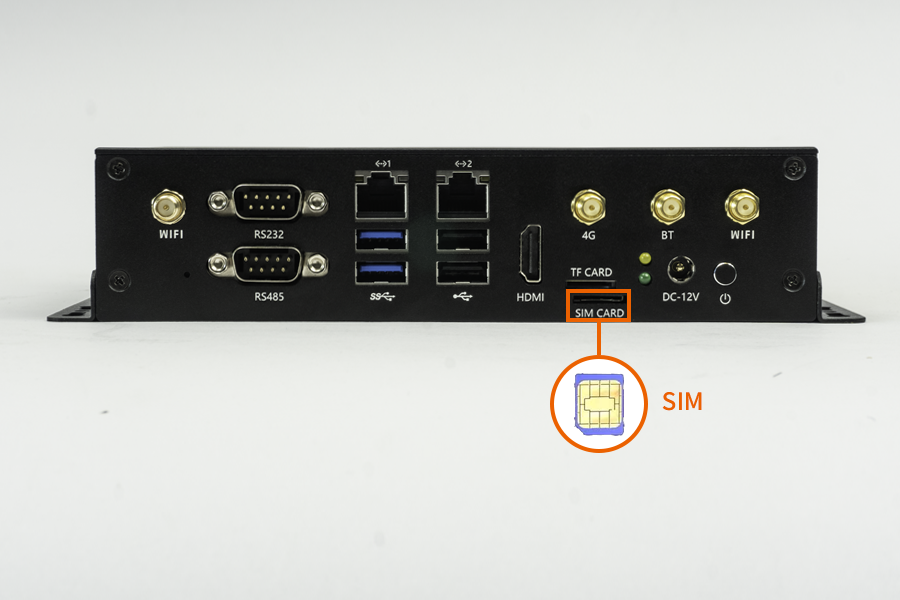

SIM Card Insertion​

_images/sim_connection.png

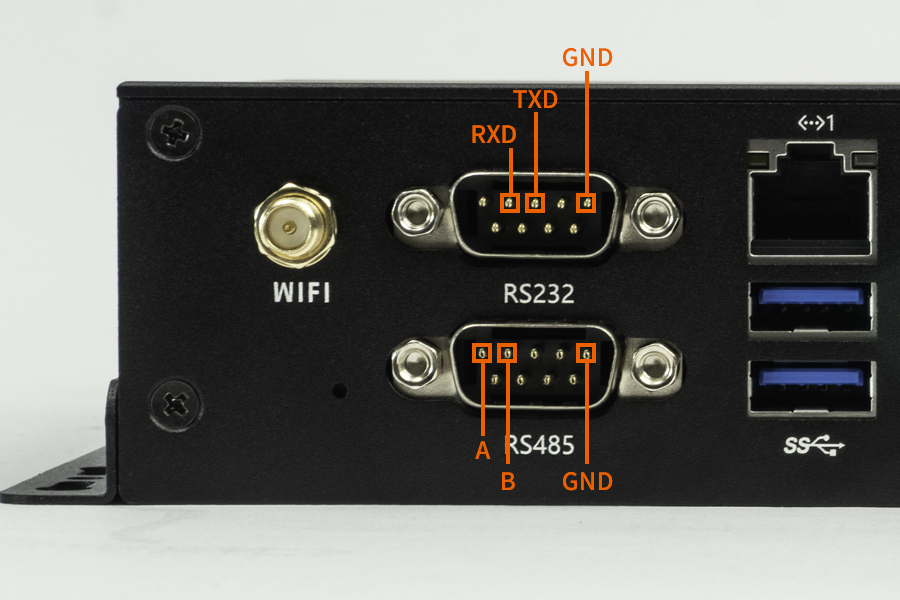

Serial Port Pinout​

_images/uart_pinout.png
