1. Hardware Interfaces

1.1. Board Interface Specification​

AIO-3576JQ V1.0 interfaces include:

  • 1 x HDMI2.1（Up to 4K120Hz）
  • 1 x USB3.0 OTG(Type-C)
  • 2 x USB3.0
  • 3 x USB2.0 (One Of Them On Extension Pins)
  • 1 x MIPI-DSI
  • 1 x MIPI-D/CPHY-CSI
  • 2 x MIPI-DPHY-CSI
  • 1 x TF Card
  • 1 x M.2(SATA3.1)
  • 1 x WIFI
  • 1 x Bluetooth
  • 1 x FAN
  • 2 x RJ45（up to 1Gbps）
  • 1 × 3.5mm Headphone Jack
  • 1 × Mic Input（2P-1.25mm）
  • 1 × Line Out（Extension Pins）
  • 1 x RS485
  • 1 x RS232
  • 1 x CAN
  • 1 x Mini PCIe (4G Module)
  • 1 x PCIe M.2 (5G Module)

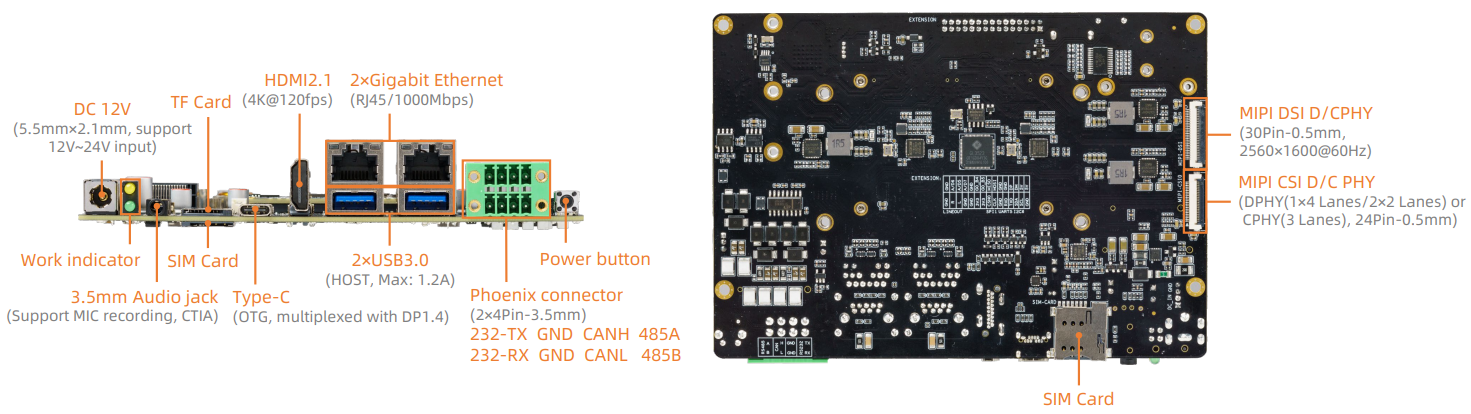

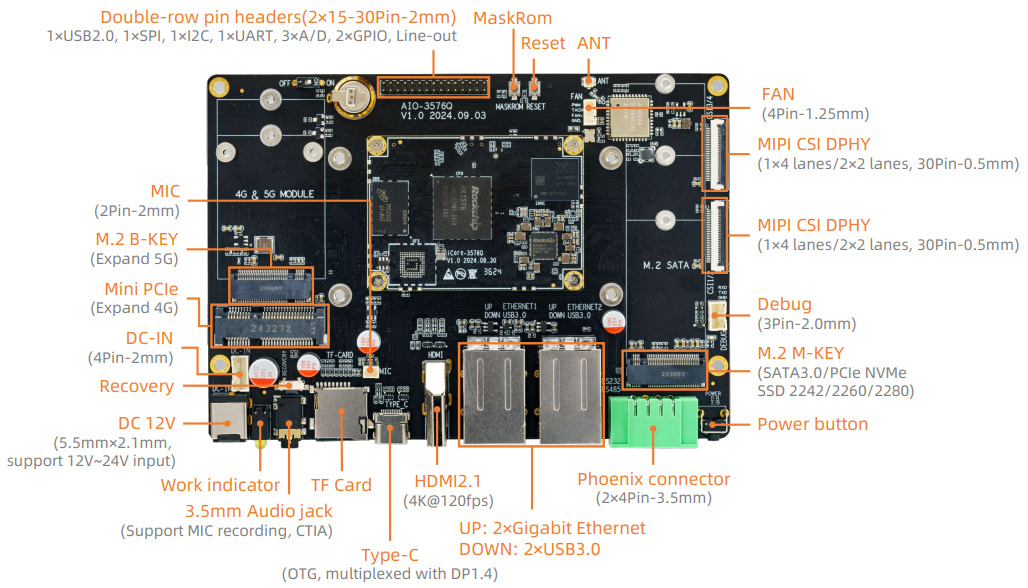

The details are shown below: _images/interface_front_en.png

_images/interface_back_en.png

1.2. Special Notice​

Mini PCIe (4G Module) and PCIe M.2 (5G Module) used same USB bus, so they can not be used at same time.
