2. Screen module

2.1. DM-M10R800 V2 MIPI module​

2.1.1. Product parameters​

  • model: M101014_BE45_A1
  • size: 10.1 inch
  • resolution: 800x1280
  • display interface: MIPI
  • visual Angle: 160°
  • touch screen: multi-point capacitive touch

2.1.2. Firmware​

The official firmware default support MIPI_DSI display. Here is the firmware download link: Firmware link

2.1.3. Reference​

Screen module Datasheet

2.1.4. Product images​

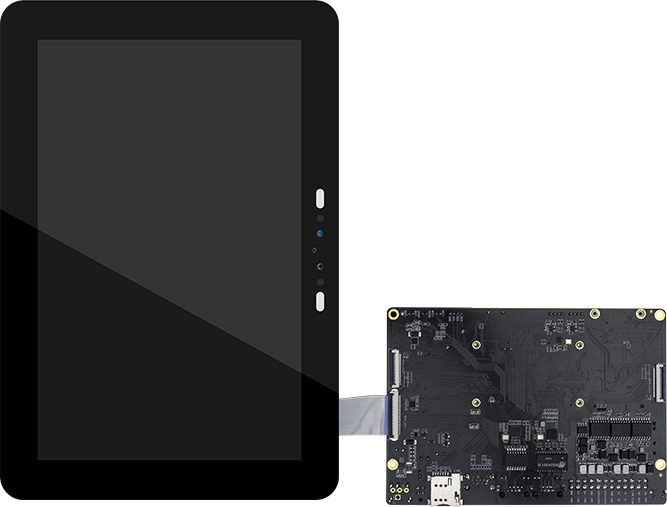

2.1.4.1. MIPI_DSI FRONT​

_images/module_display_mipi_DSI_front.jpg

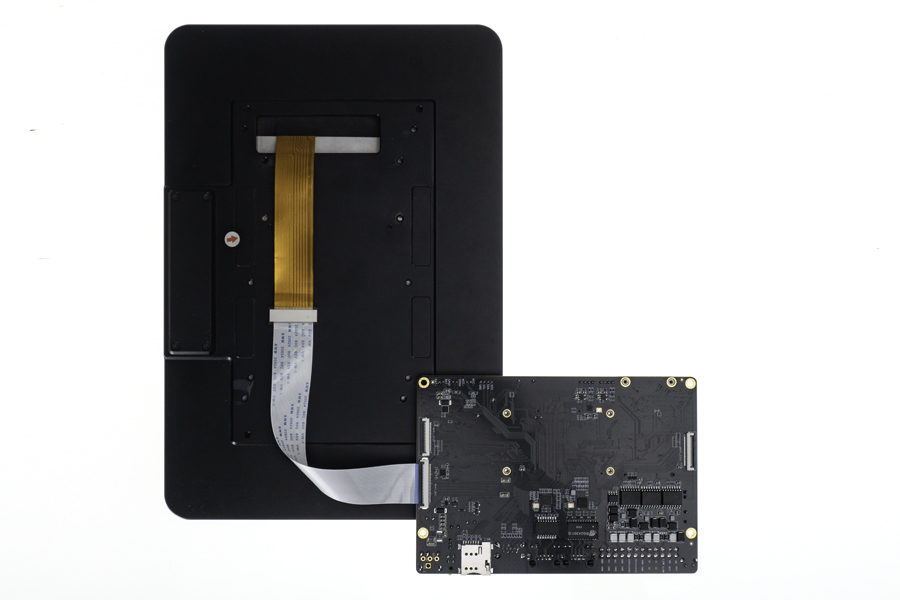

2.1.4.2. MIPI_DSI BACK​

_images/module_display_mipi_DSI_back.jpg
