1. Interface definition

1.1. Interface definition of the whole machine​

ROC-RK3588-RT V1.0 provides rich interfaces, including:

  • 2 x HDMI2.1 (Max output support 8K@60Hz)
  • 1 x Display Port1.4 / Type-C OTG (Max output support 8K@30Hz)
  • 1 x PCIe2.0 (M.2 NVMe)
  • 1 x PCIe2.0 (M.2 E-KEY for WiFi6/BT5.0)
  • 1 x TF Card
  • 1 x USB3.0
  • 1 x USB2.0
  • 2 x RJ45（Suport 1Gbps）
  • 1 x RJ45 (Suport 2.5Gbps)
  • 1 × 3.5mm Headphone
  • 1 x BTB Connector

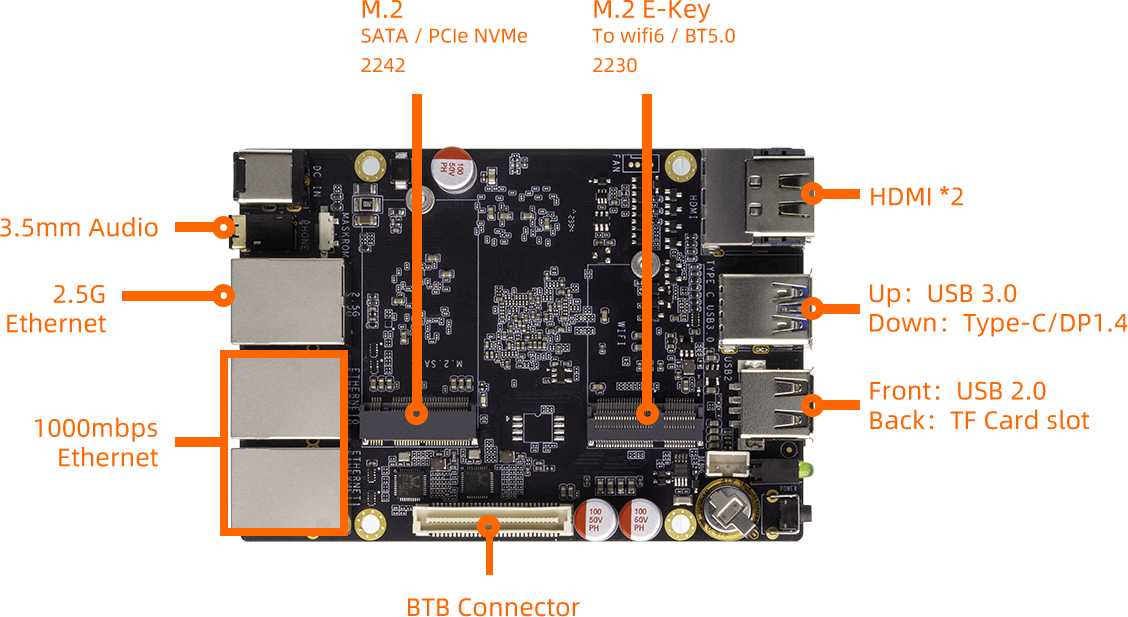

The details are shown below：

_images/interface_all_en.png
