1. Interface definition

1.1. Machine interface definition​

ROC-RK3506J-CC V1.0 The interfaces used mainly include:

  • 1 x Recovery key
  • 1 x Boot key
  • 1 x Reset key
  • 2 x LED
  • 1 x RTC Battery Holder
  • 1 x DEBUG serial port (UART0)
  • 1 x USB2.0 OTG(Type-C)
  • 1 x MIPI-DSI
  • 1 x TF Card(Reused with EMMC interface, not attached by default)
  • 1 x USB2.0
  • 1 x WIFI(Only supports 2.4G band, not 5G band)
  • 2 x RJ45(Supports 100Mbps)
  • 1 × 3.5mm headphone jack

The details are as follows:

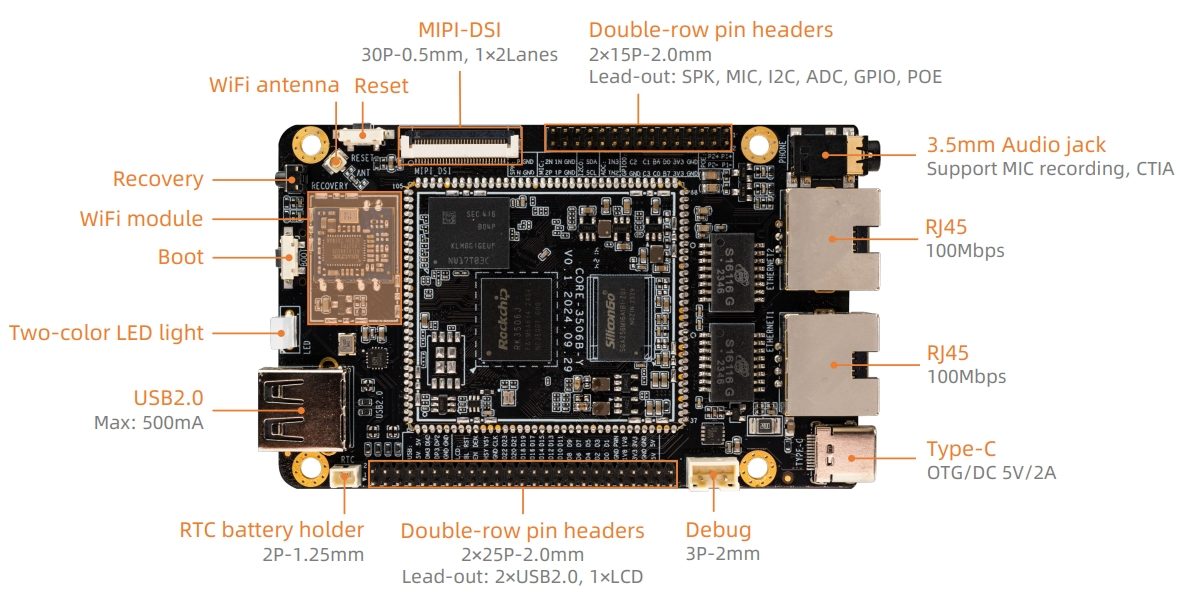

_images/interface_all1_en.jpg

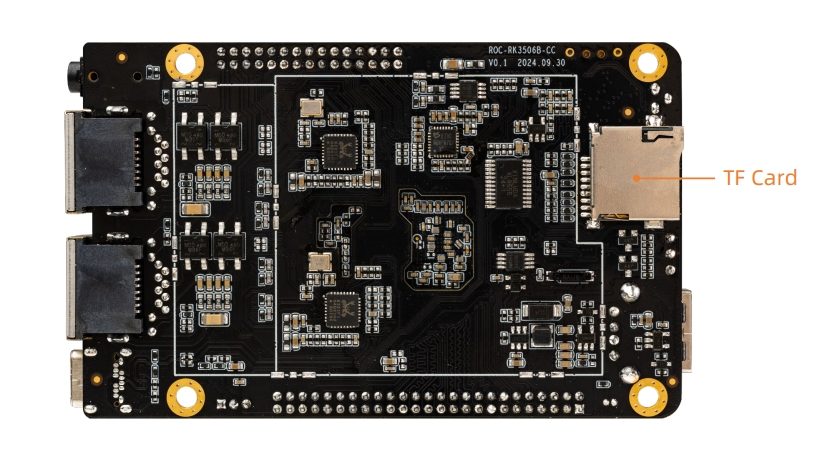

_images/interface_all2_en.jpg
