一、Introduction
Product introduction

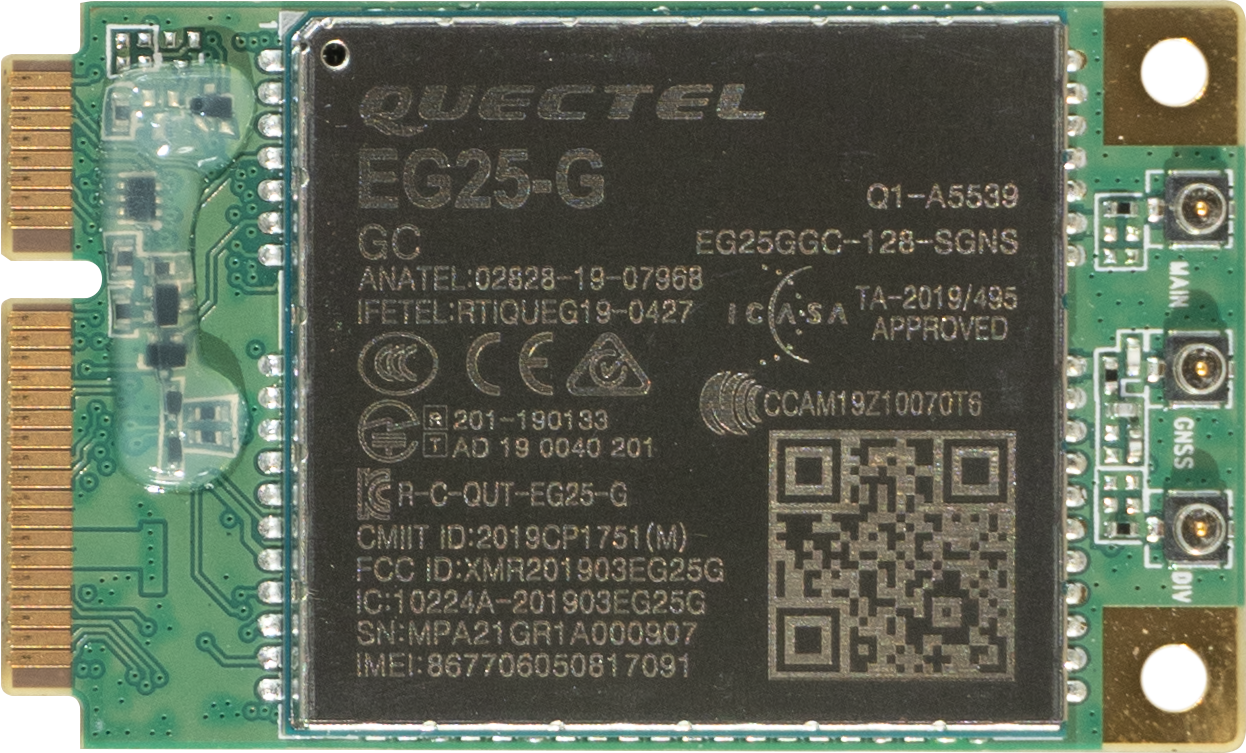

EG25-G
EG25-G is the LTE Cat 4 wireless communication module designed by CTC for M2M and IoT. It adopts 3GPP Rel.11 LTE technology and supports maximum The line rate is 150 Mbps and the maximum uplink rate is 50 Mbps. At the same time, EG25-G is compatible with remote communication UMTS/HSPA+ UC200T series modules in package.Multi-mode LTE Standard EC2x series (EC25 series, EC21 series and EC20-CE) /EC200A series /EG21-G modules can be designed and used efficiently Live to switch.
This module does not support voice calls and SMS, if you need support, please contact business sales@t-firefly.com。
Detailed parameters
| Model | EG25-G Mini PCIe |
|---|---|
| Working frequency band | LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28 LTE-TDD: B38/B39/B40/B41 UMTS: B1/B2/B4/B5/B6/B8/B19 GSM: B2/B3/B5/B8 |
| Data transmission | LTE-FDD: Max 150 Mbps(DL) Max 50Mbps(UL) LTE-TDD: Max 130 Mbps(DL) Max30 Mbps(UL) DC-HSDPA: Max 42 Mbps(DL) (UL) HSUPA: Max 5.76 Mbps(UL) WCDMA: Max 384 kbps(DL) Max 384 kbps(UL) EDGE: Max 296 kbps(DL) Max236.8 kbps(UL) GPRS: Max107 kbps(DL) Max 85.6 kbps(UL) |
| Structure size | 29.0 mm × 32.0 mm × 2.4 mm Weight about 4.9 g |
| Authentication | Deutsche Telekom Verizon/AT&T/Sprint/U.S. Cellular/T-Mobile Telus/Rogers* SRRC/CCC/NAL GCF CE UKCA PTCRB FCC IC Anatel IFETEL KC NCC JATE/TELEC RCM NBTC IMDA ICASA RoHS WHQL |
| Antenna Connectors | x3 main antenna, diversity antenna and GNSS antenna |
二、Usage
Hardware connection
Module connection

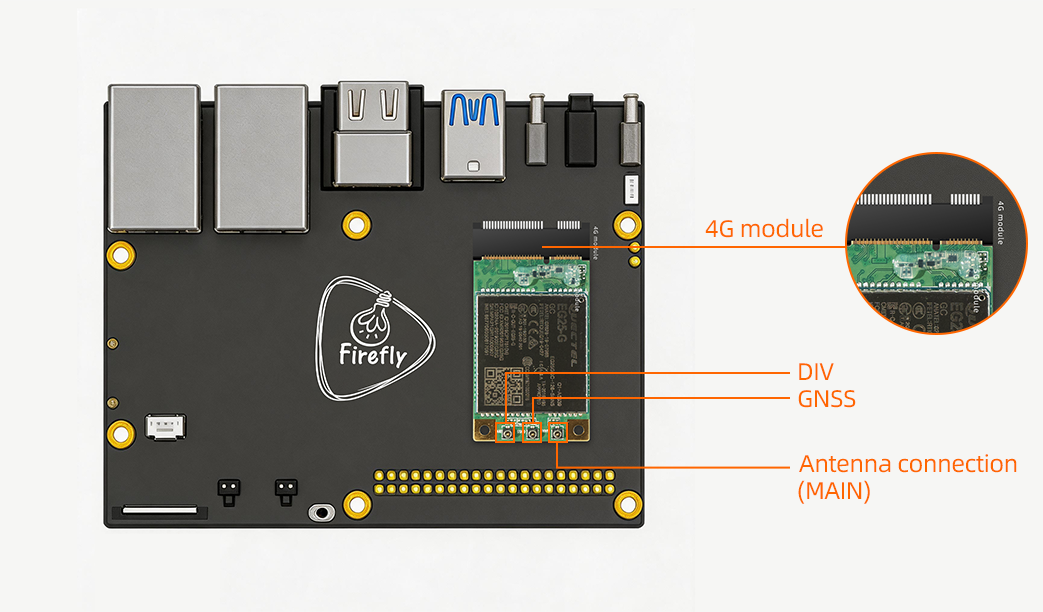

PCIE connection

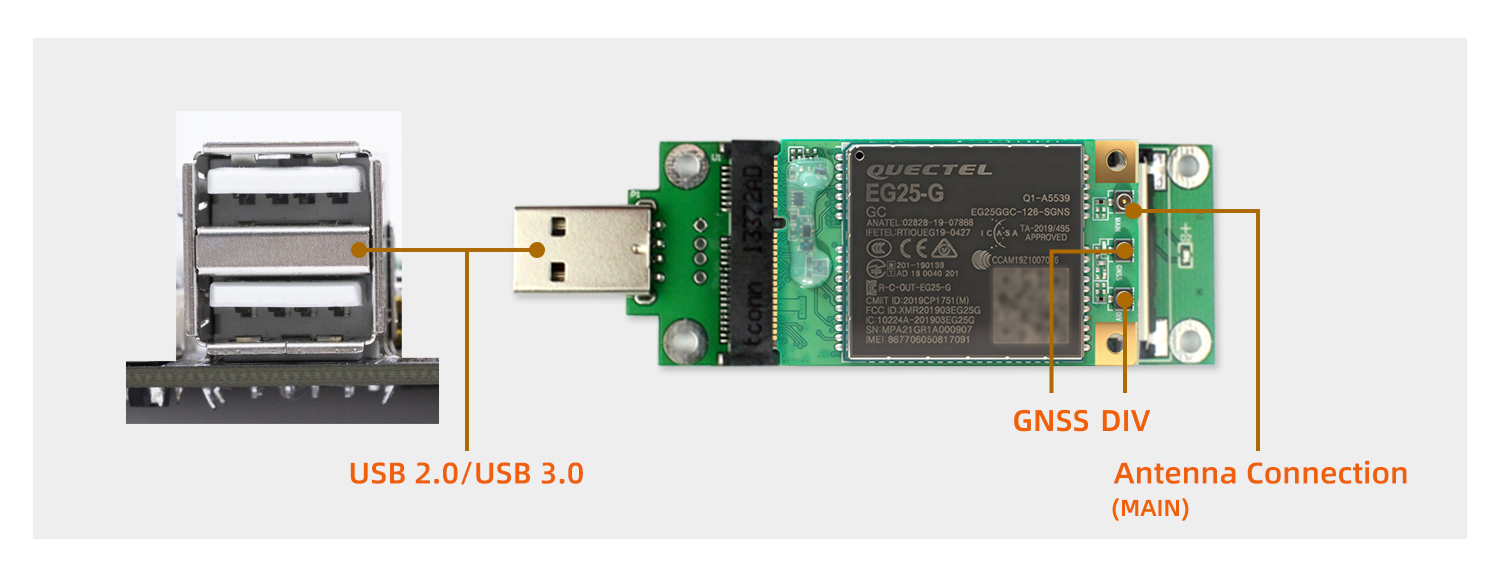

USB connection

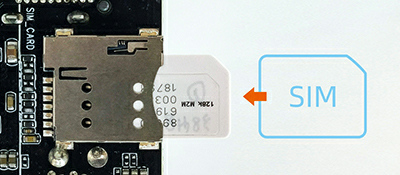

SIM insertion
三、Firmware and Resource download
Related documents and firmware download, see the official website Resource Download
四、Tutorial
Flash firmware
| CPU | USB upgrade | SD upgrade |
|---|---|---|
| RK3566 | AIO-3566JD4, ROC-RK3566-PC | AIO-3566JD4, ROC-RK3566-PC |
| RK3568 | AIO-3568J, ROC-RK3568-PC, ROC-RK3568-PC-SE | AIO-3568J, ROC-RK3568-PC, ROC-RK3568-PC-SE |
| RK3588 | ITX-3588J, ROC-RK3588S-PC, AIO-3588SJD4,AIO-3588Q | ITX-3588J, ROC-RK3588S-PC, AIO-3588SJD4 ,AIO-3588Q |
| RK3576 | ROC-RK3576-PC, AIO-3576Q, AIO-3576C | ROC-RK3576-PC ,AIO-3576Q, AIO-3576C |
