一、Introduction

Product introduction​

_images/dm-m10r800-en.png

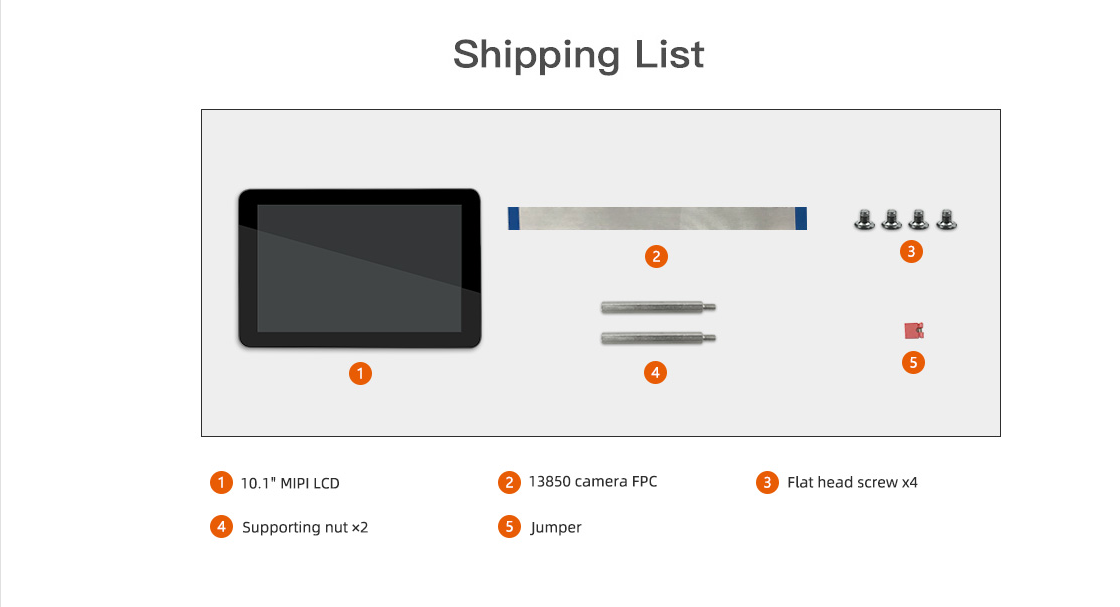

Shipping list​

_images/dm-m10r800_shop_list_en.png

Detailed parameters​

parameters
Screen10.1 inch IPS screen
Resolution800x1280 pixels (10:16)
Touch screenCapacitive multi-touch screen
Brightness200 cd/m2
DisplayLVDS interface(PH2.0-34P pin header, black)
TouchTouch screen data interface(PH2.0-8P Water socket, yellow)
PowerPower interface(PH2.0-8P Water socket, red)
Operating temperature0℃-25℃，25℃-60℃
Storage temperature-10℃-25℃，25℃-60℃
Size260x171x18.5mm(The thickness of the middle frame is 6.5mm, and the height of the screw column is 12mm)

二、Usage

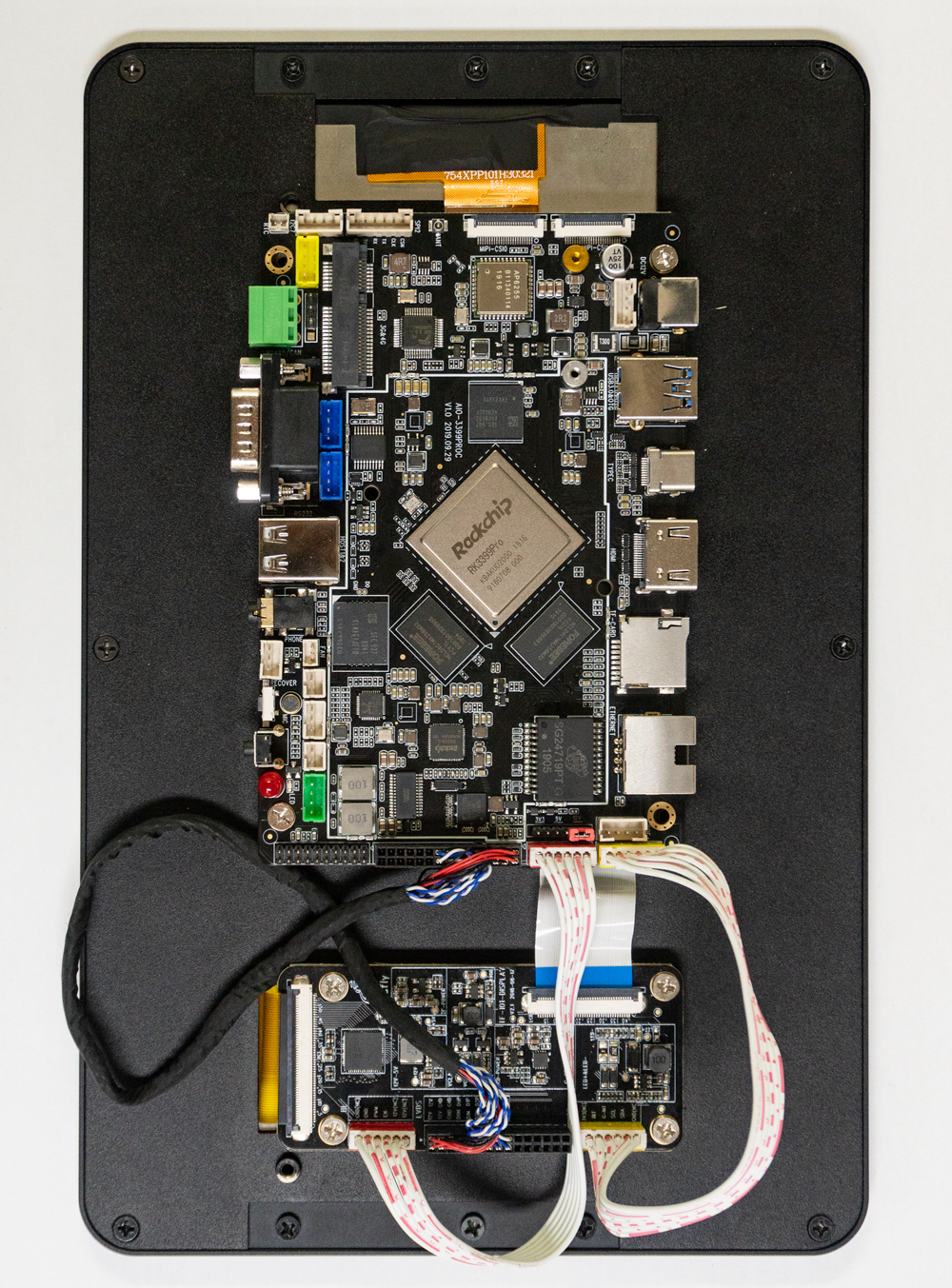

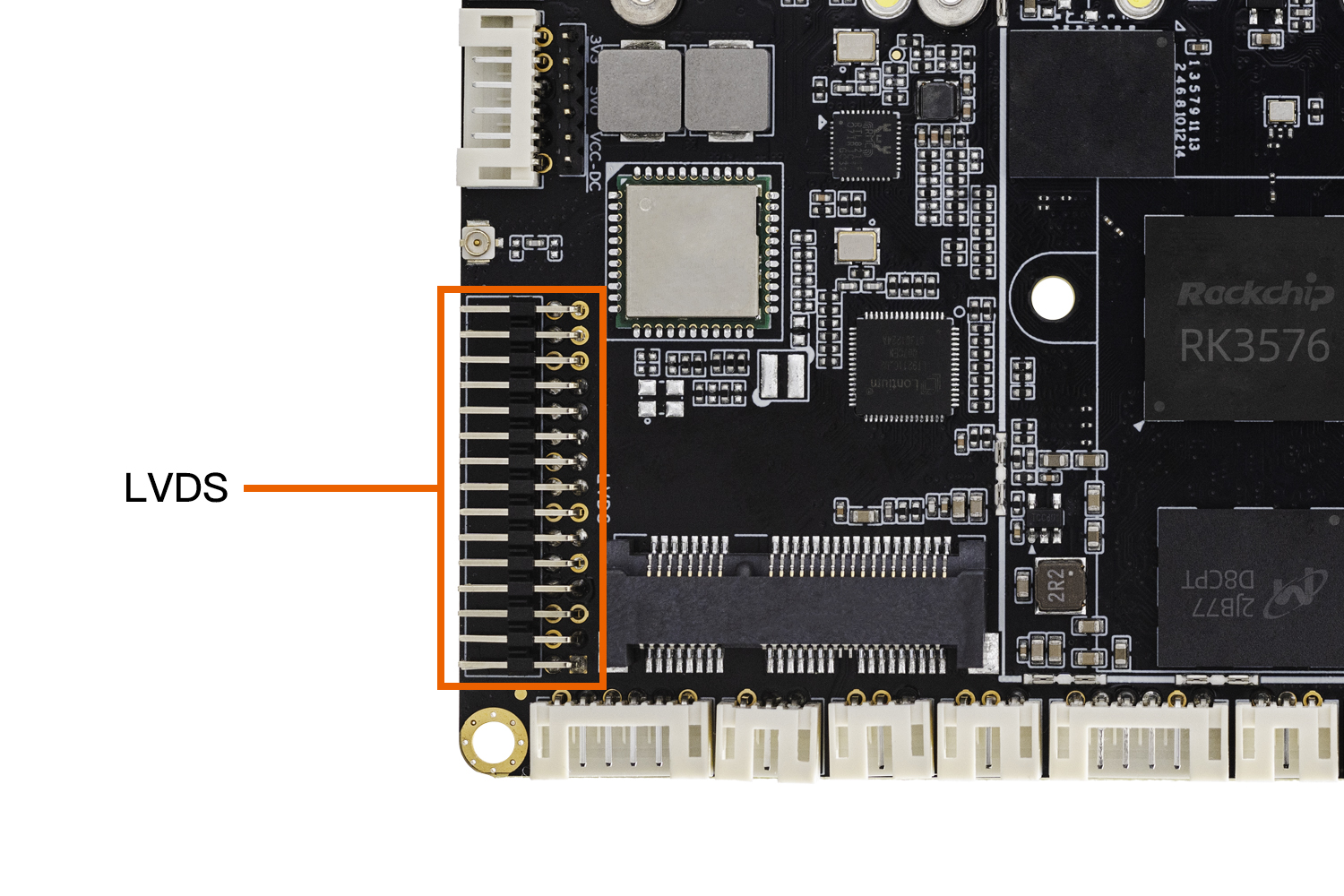

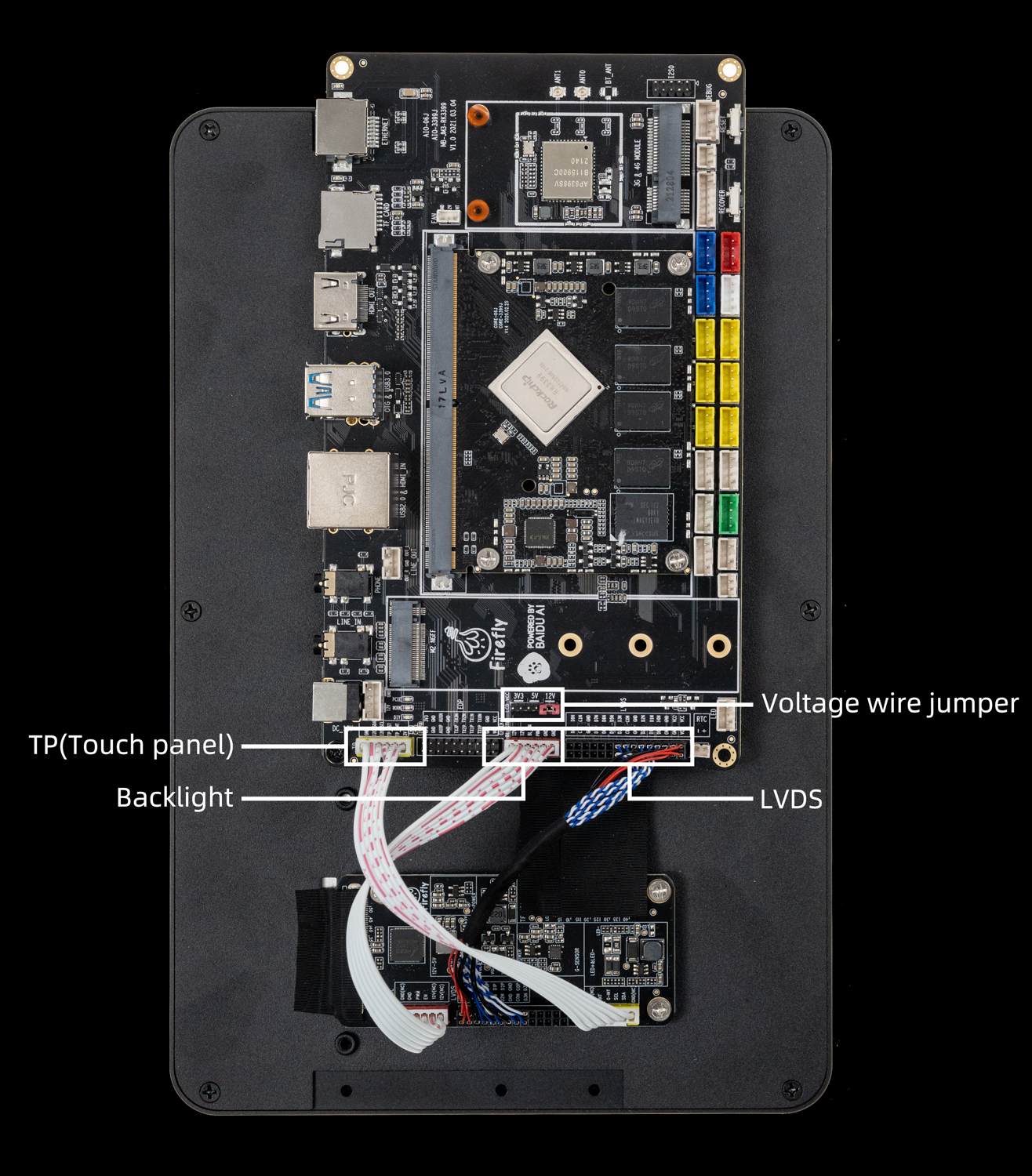

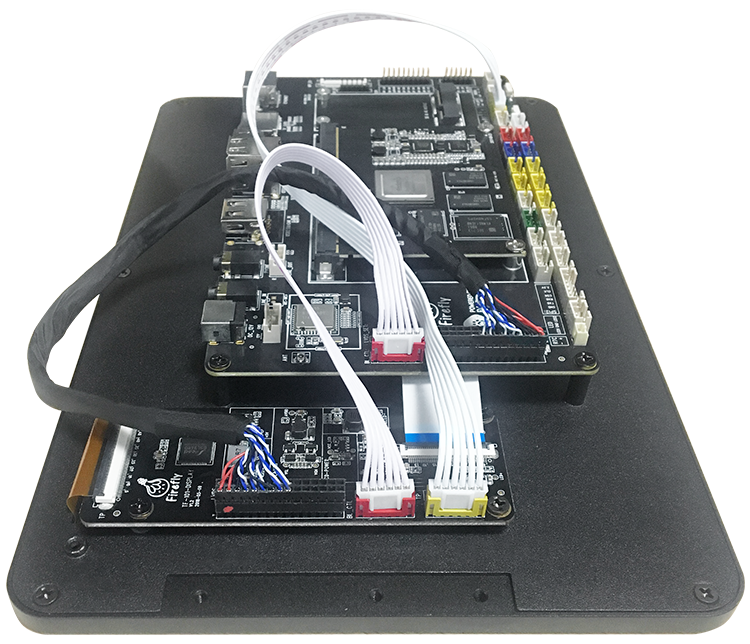

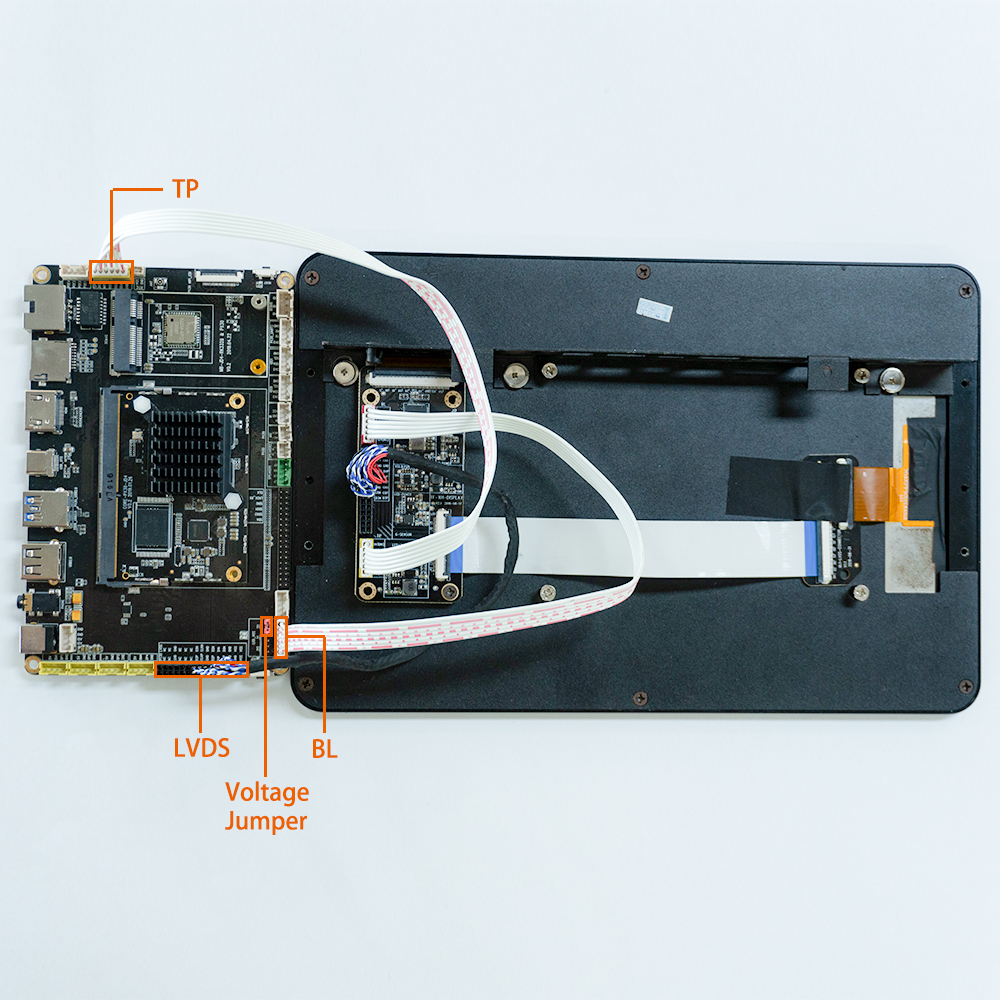

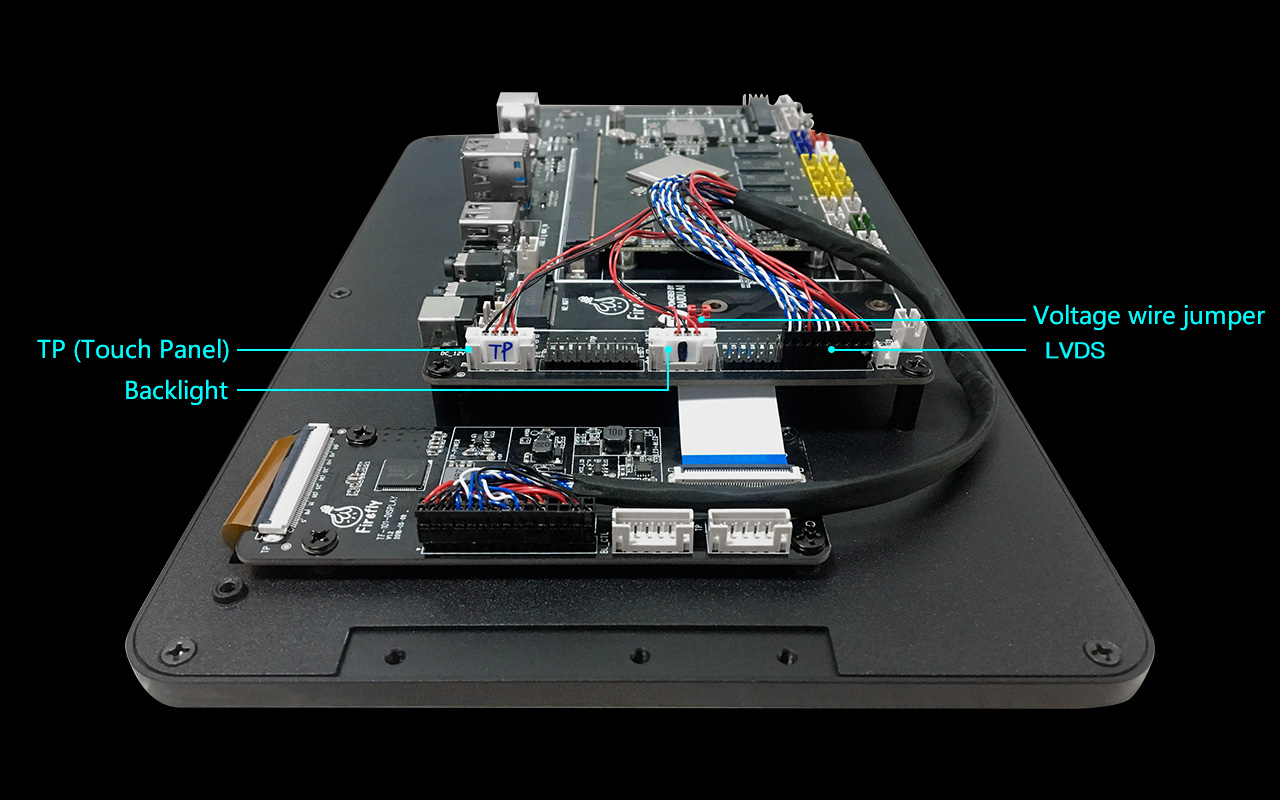

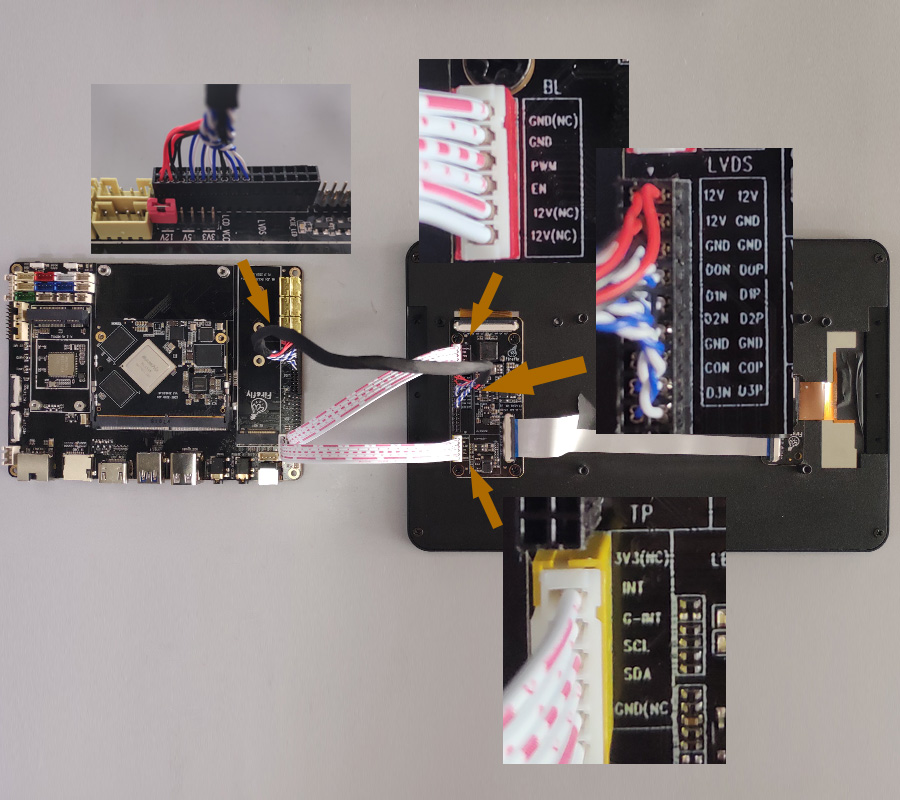

Hardware connection​

CPUBoard
PX30AIO-PX30-JD4
RK3128AIO-3128C
RK3288AIO-3288C, AIO-3288J
RK3399AIO-3399C, AIO-3399JD4 AIO-3399J old line, AIO-3399J new line
RK3399ProAIO-3399Pro-JD4, AIO-3399ProC
RK3576AIO-3576C

三、Resource download

Related documents and firmware download, see the official website Resource Download。

四、Tutorial

Firmware download​

CPUUSB upgradeSD upgrade
PX30AIO-PX30-JD4
RK3128AIO-3128C
RK3288AIO-3288J, AIO-3288CAIO-3288J, AIO-3288C
RK3399AIO-3399JD4, AIO-3399J AIO-3399CAIO-3399JD4, AIO-3399J AIO-3399C
RK3399ProAIO-3399Pro-JD4, AIO-3399ProCAIO-3399Pro-JD4, AIO-3399ProC
RK3576AIO-3576CAIO-3576C

Compile the firmware​

PX30 platform​

SystemBoard
Android8.1AIO-PX30-JD4
UbuntuAIO-PX30-JD4
BuildrootAIO-PX30-JD4

RK3128 platform​

SystemBoard
Android5.1AIO-3128C

RK3288 platform​

SystemBoard
Android5.1AIO-3288J, AIO-3288C
UbuntuAIO-3288J, AIO-3288C
BuildrootAIO-3288J, AIO-3288C

RK3399 platform​

SystemBoard
Android7.1AIO-3399JD4, AIO-3399J, AIO-3399C
Android10.0AIO-3399J, AIO-3399C
UbuntuAIO-3399JD4, AIO-3399J, AIO-3399C
BuildrootAIO-3399JD4, AIO-3399J, AIO-3399C

RK3399Pro platform​

SystemBoard
Android9.0AIO-3399Pro-JD4, AIO-3399ProC
UbuntuAIO-3399Pro-JD4, AIO-3399ProC

RK3576 platform​

SystemBoard
Android14.0AIO-3576C
UbuntuAIO-3576C
