一、Introduction

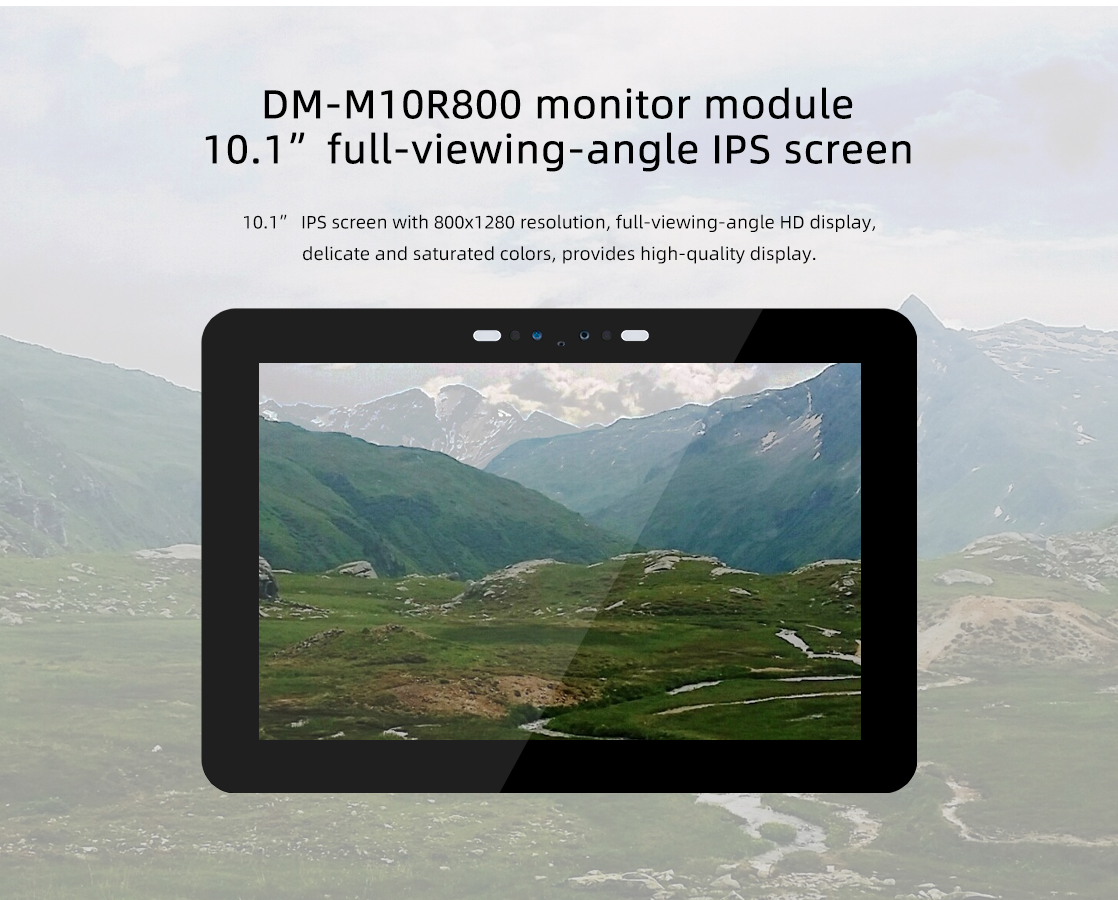

Product introduction
Detailed parameters
| parameters | |
|---|---|
| Model | M101014_BE45_A1 |
| Size | 10.1 inch |
| Resolution | 800x1280 (10:16) |
| Display interface | MIPI |
| Visual Angle | 160° |
| Touch screen | multi-point capacitive touch |
二、Usage
Hardware connection
| CPU | Board |
|---|---|
| RK3399 | ROC-RK3399-PC-PLUS, AIO-3399C(AI) |
| RK3399Pro | AIO-3399Pro-JD4, AIO-3399ProC |
| RK3566 | AIO-3566JD4 DSI0, AIO-3566JD4 DSI1, ROC-RK3566-PC |
| RK3568 | AIO-3568J, ROC-RK3568-PC, ROC-RK3568-PC SE |
| RV1126_RV1109 | AIO-1126-JD4, AIO-1109-JD4, CAM-C1126S2U, CAM-C1109S2U |
| RK3588 | ITX-3588J, ROC-RK3588S-PC, AIO-3588SJD4,AIO-3588Q,AIO-3588L,AIO-3588SG |
三、Firmware and Resource download
Related documents and firmware download, see the official website Resource Download
四、Tutorial
Flash firmware
| CPU | USB upgrade | SD upgrade |
|---|---|---|
| RK3399 | ROC-RK3399-PC-PLUS,AIO-3399C(AI) | ROC-RK3399-PC-PLUS,AIO-3399C(AI) |
| RK3399Pro | AIO-3399Pro-JD4, AIO-3399ProC | AIO-3399Pro-JD4, AIO-3399ProC |
| RK3566 | AIO-3566JD4, ROC-RK3566-PC | AIO-3566JD4, ROC-RK3566-PC |
| RK3568 | AIO-3568J, ROC-RK3568-PC, ROC-RK3568-PC SE | AIO-3568J, ROC-RK3568-PC, ROC-RK3568-PC SE |
| RV1126_RV1109 | AIO-1126-JD4, AIO-1109-JD4, CAM-C1126S2U, CAM-C1109S2U | AIO-1126-JD4, AIO-1109-JD4 |
| RK3588 | ITX-3588J, ROC-RK3588S-PC, AIO-3588SJD4,AIO-3588Q,AIO-3588L,AIO-3588SG | ITX-3588J, ROC-RK3588S-PC, AIO-3588SJD4,AIO-3588Q,AIO-3588L,AIO-3588SG |
Compile the firmware
RK3399 platform
| System | Board |
|---|---|
| Android7.1 | ROC-RK3399-PC-PLUS, ROC-RK3399-PC-Pro, AIO-3399C(AI) |
| Android10.0 | ROC-RK3399-PC-PLUS, ROC-RK3399-PC-Pro, AIO-3399C(AI) |
| Ubuntu | ROC-RK3399-PC-PLUS, ROC-RK3399-PC-Pro, AIO-3399C(AI) |
RK3399Pro platform
| System | Board |
|---|---|
| Android9.0 | AIO-3399Pro-JD4, AIO-3399ProC |
| Ubuntu | AIO-3399Pro-JD4, AIO-3399ProC |
RK3566 platform
| System | Board |
|---|---|
| Android11.0 | AIO-3566JD4, ROC-RK3566-PC |
| Ubuntu | AIO-3566JD4, ROC-RK3566-PC |
| Buildroot | AIO-3566JD4, ROC-RK3566-PC |
RK3568 platform
| System | Board |
|---|---|
| Android11.0 | AIO-3568J, ROC-RK3568-PC, ROC-RK3568-PC SE |
| Ubuntu | AIO-3568J, ROC-RK3568-PC |
| Buildroot | AIO-3568J, ROC-RK3568-PC |
RV1126_RV1109 platform
| System | Board |
|---|---|
| Buildroot | AIO-1126-JD4, AIO-1109-JD4, CAM-C1126S2U, CAM-C1109S2U |
RK3588 platform
| System | Board |
|---|---|
| Android12.0 | ITX-3588J, ROC-RK3588S-PC, AIO-3588SJD4,AIO-3588Q,AIO-3588L,AIO-3588SG |
| Buildroot | ITX-3588J,ROC-RK3588S-PC,AIO-3588SJD4,AIO-3588Q,AIO-3588MQ,AIO-3588JQ,AIO-3588L,AIO-3588SG |
| Ubuntu20.04 | ITX-3588J,ROC-RK3588S-PC,AIO-3588SJD4,AIO-3588Q,AIO-3588MQ,AIO-3588JQ,AIO-3588L,AIO-3588SG |
| Debian11 | ITX-3588J,ROC-RK3588S-PC,AIO-3588SJD4,AIO-3588Q,AIO-3588MQ,AIO-3588JQ,AIO-3588L,AIO-3588SG |
