1. Interface definition

1.1. Interface definition of the whole machine​

AIO-3588JD4 V1.0 provides rich interfaces, including:

  • 1 x HDMI2.1 (Up to 8K@60Hz)
  • 1 x USB Type-C (For download/debug)
  • 2 x USB3.0
  • 2 x MIPI-DPHY-CSI (CSI0 muxed with CSI1, can not be used at same time)
  • 1 x TF Card
  • 1 x Mini PCIe (4G module)
  • 1 x PCIe M.2 (5G module)
  • 1 x SIM Card Slot
  • 1 x WIFI (External module)
  • 1 x Bluetooth (External module)
  • 1 x FAN
  • 1 x Headphone （Supports microphone recording, US standard）
  • 1 x CAN (Phoenix connector)
  • 1 x RS232 (Phoenix connector)
  • 1 x RS485 (Phoenix connector)
  • 1 x Line-Out (Through pin header)
  • 1 x Line-In (Through pin header)
  • 1 x USB2.0 (Through pin header)
  • 1 x SPI (Through pin header)
  • 2 x I2C (Through pin header)
  • 2 x RJ45 (Support 1Gbps ethernet)
  • 1 x M2.SATA3.0 or M2.PCIe2.0 (SATA3.0 is supported by default.)

The details are shown below：

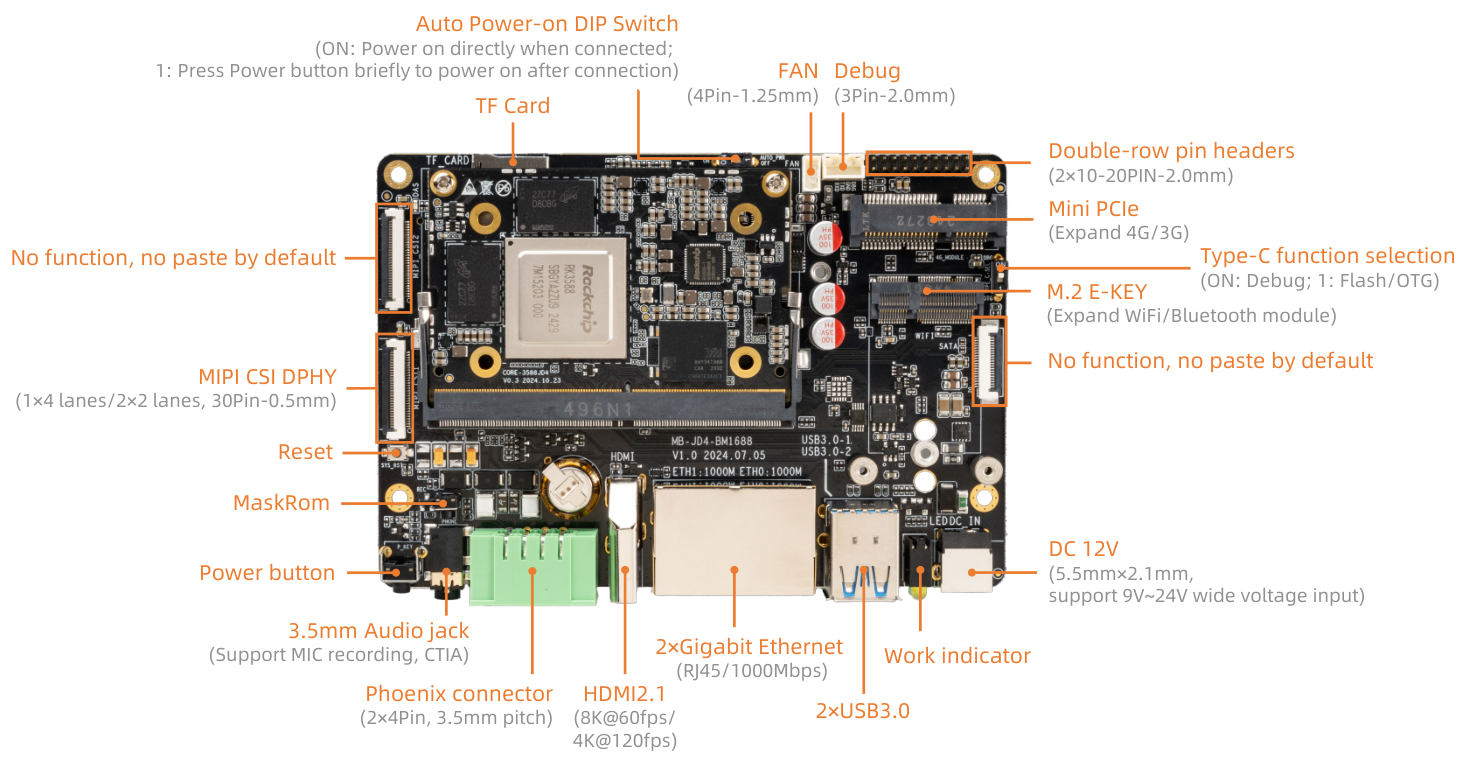

_images/interface_front.png

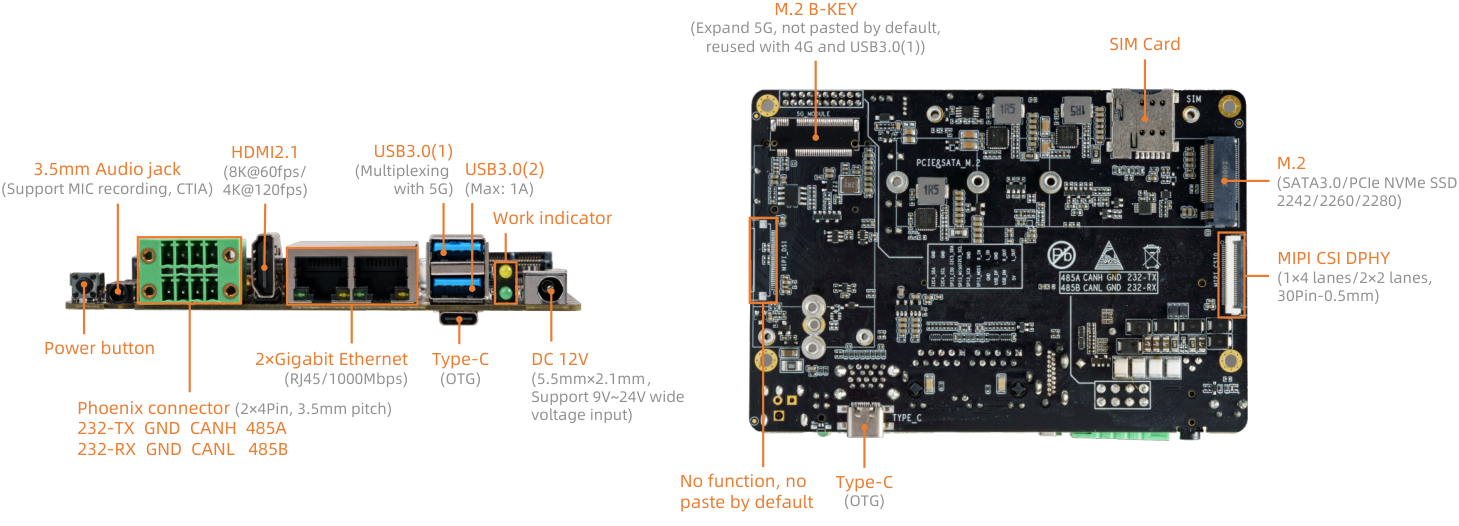

_images/interface_back.png
