Interface definition of the whole machine​

AIO-1684XJD4 provides rich interfaces, including:

  • 12V Power interface
  • 2 x USB 3.0
  • 2 x USB 2.0
  • 2 x 1000Mbps Ethernet
  • WIFI antenna
  • HDMI 1.4
  • TF card slot
  • SIM card slot
  • FAN interface
  • Power button
  • Reset button
  • Debugging serial port
  • Industrial serial port (RS485, RS232, TTL)
  • Mini PCIe interface (4G LTE)
  • M.2 interface (5G Module)
  • M.2 SATA interface (SATA3.0 SSD)

The specific details are as follows:

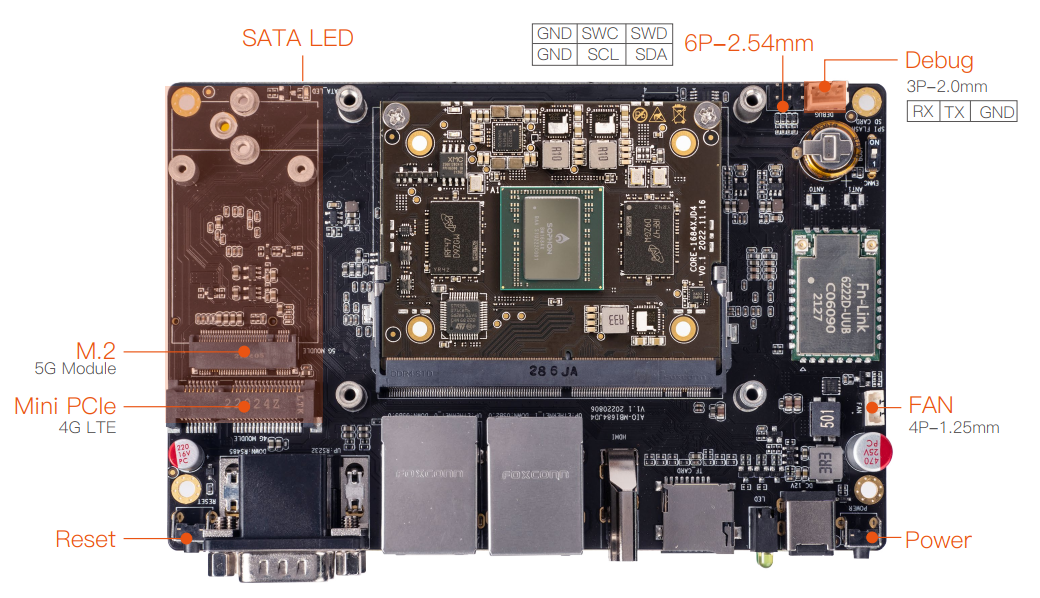

_images/interface_front.pngFront Interface

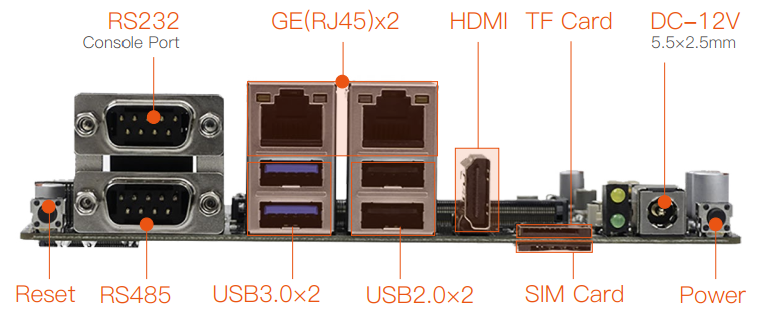

_images/interface_side.pngSide Interface

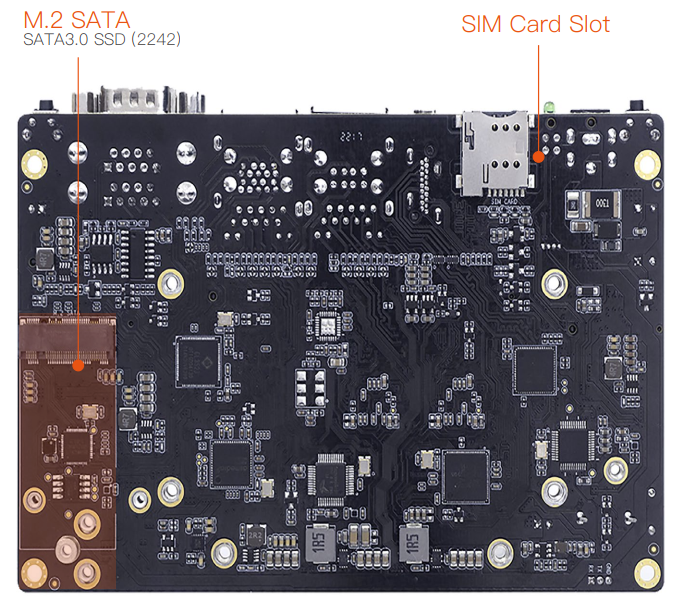

_images/interface_back.pngBack Interface

WiFi Antenna Connection​

Antenna Specifications: Stick Antenna 5dB; Flat Head

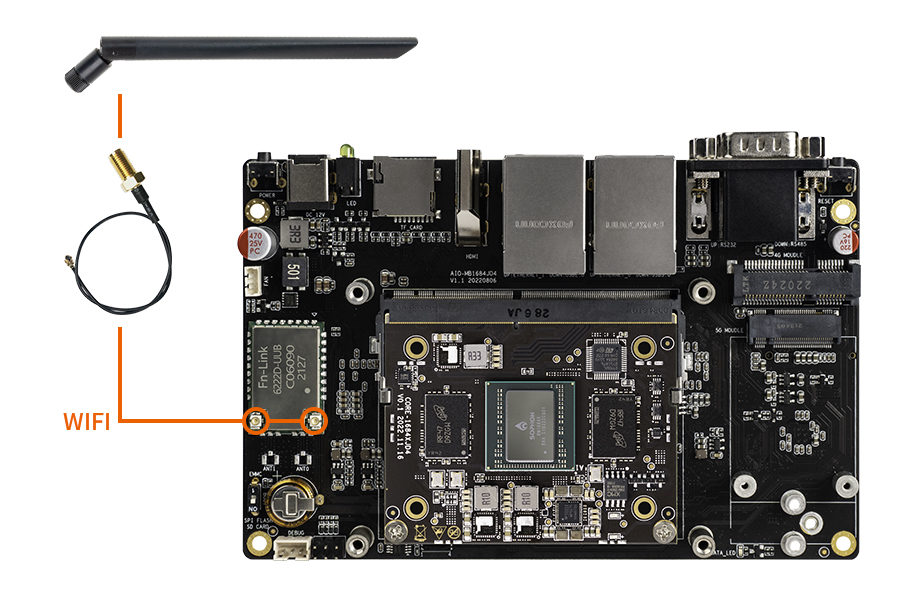

_images/wifi_antenna_connection.jpgWiFi Antenna

4G Module Antenna Connection​

Antenna Specifications: Stick Antenna 4GLTE-5dB; Round Head

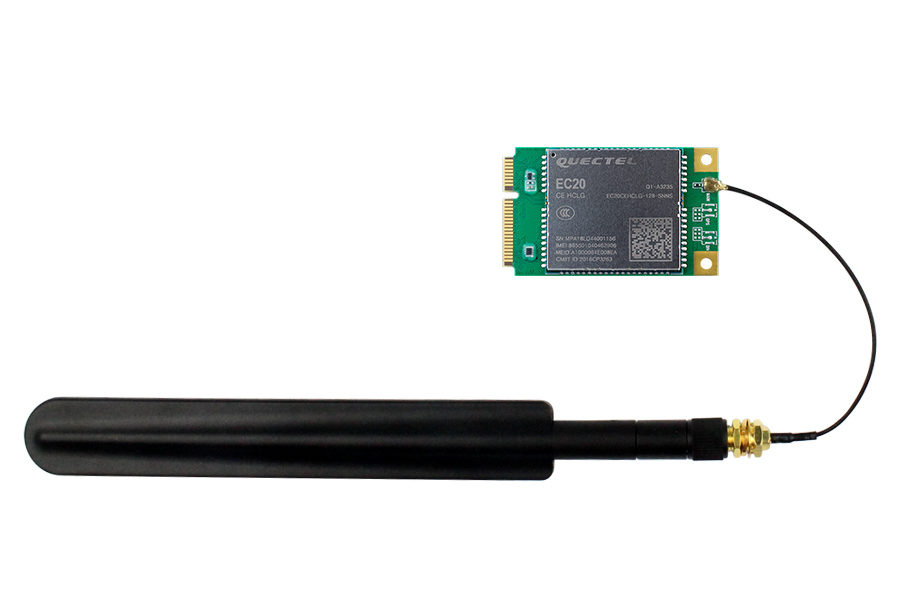

_images/4g_antenna_connection.jpg4G Antenna

SIM Card Connection​

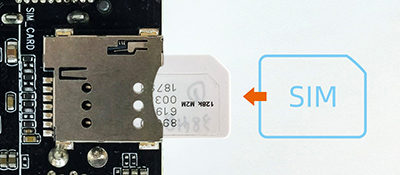

_images/sim_connection.jpgSIM Card

UART Pinout​

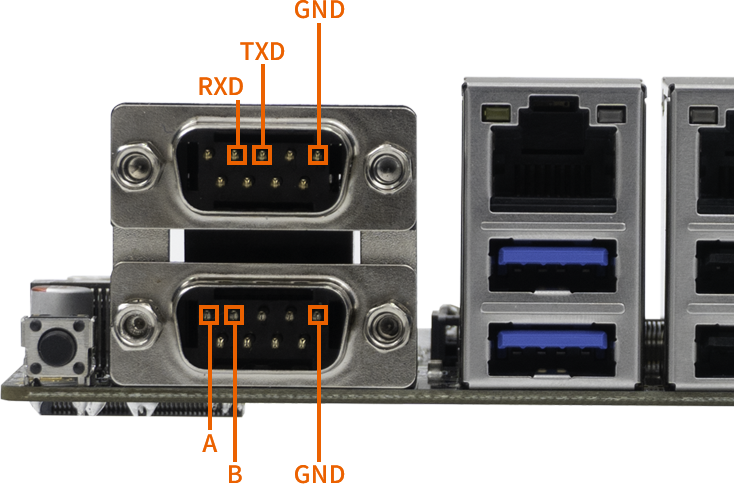

_images/uart_pinout.pngUART Pinout
