Product introduction

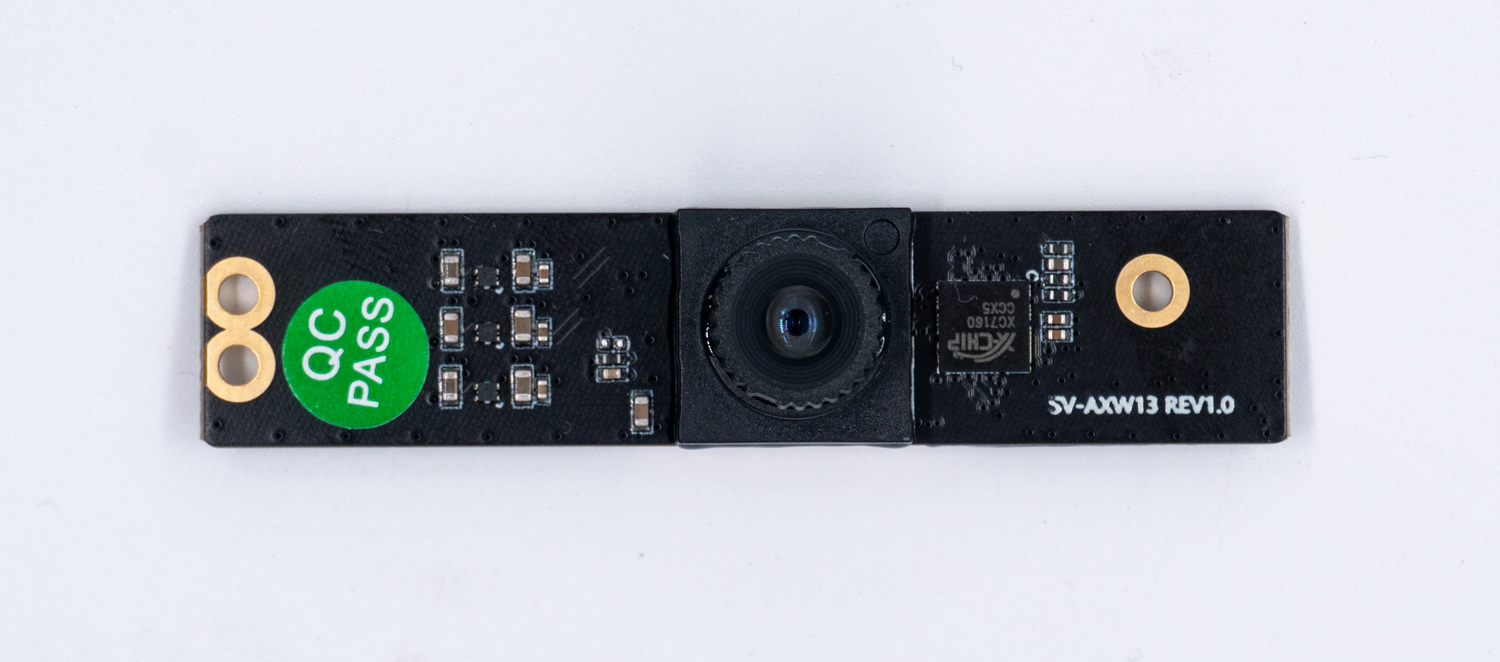

CAM-8MS1M CAM-8MS1M 1/2.7”industrial-grade HD WDR sensor 100dB WDR, suitable for various complex light environments.MIPI standard interface, supports 7x24h operating.

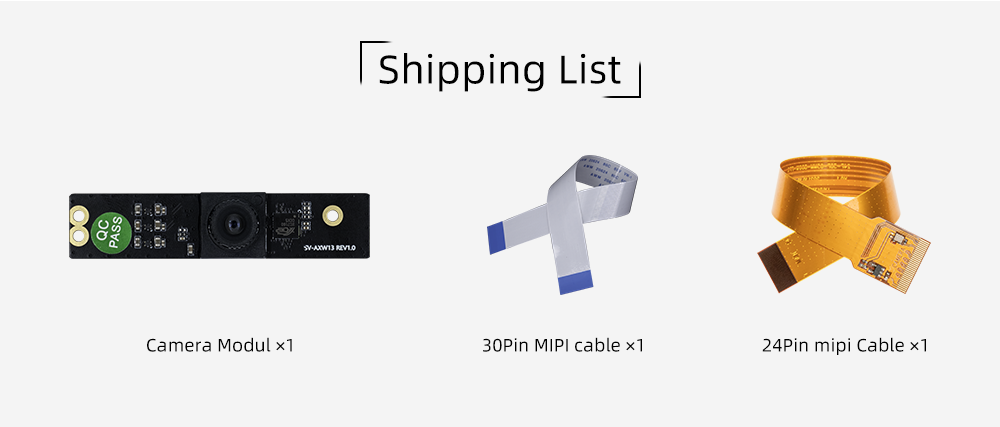

Shipping list
Detailed parameters
| Parameters |
|---|
| Sensor | SC8238 |
| CMOS Sensor | 1/2.7 sensor/RGB |
| ISP | built in XC7160 |
| Max Resolution | 3840(H) x 2160(V) (16:9 mode) |
| Sensor Pixel Size | 1.5um x 1.5um |
| Low Lux | ≤0.3Lux/F2.4 |
| Image Transmission Rate | 4K/25fps |
| SNR | 36dB |
| WDR | >100DB |
| Distortionless Lens | M8 x 0.25 lens/650NM filter |
| FOV | H: 84°V: 50° |
| Aperture | F2.0 |
| Focal Length | 4.3mm |
| Distortion | TV Distortion<1% |
| Lens CRA | . <19.4° |
| Lens Temperature Range | -20° /+65° |
| Video Output Format | YUV/MJPG |
| IR | NC |
| Power Supply | 5V,Ripple not higher than 80mv. |
| Connection Way | 0.5mm FPC (CAM-8MS1M is 30pins, Board needs to be based on the hardware interface) |
| Power Consumption | 5V/ 270MA+10% |
| Operating Temperature | -10° C ~ +55° C (Humidity : 10%RH ~ 75%RH) |
| Storage Temperature | -20° C~ +65° C (Humidity : 10%RH ~75%RH) |
2. Usage
Hardware connection
The Firefly development board has two MIPI CSI interfaces, one is a 30pin interface and the other is a 24pin interface. When connecting, please pay attention to the direction and connect only to the corresponding pin number interface.Here is a unified interface diagram:

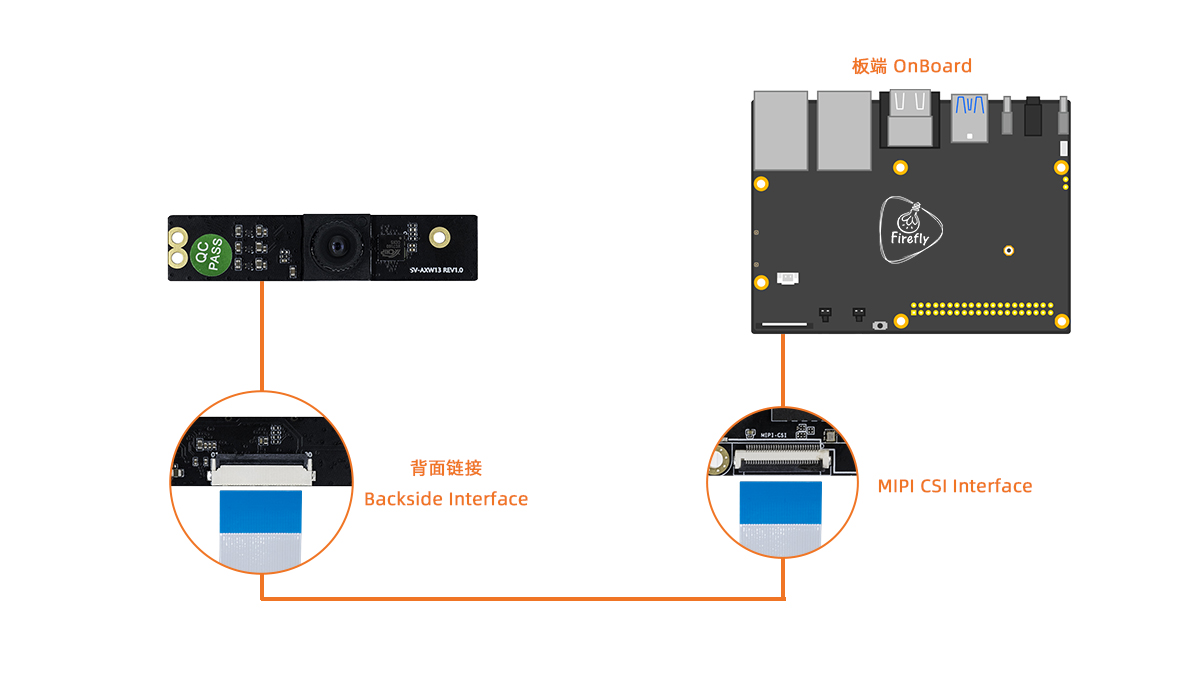

30pin MIPI CSI Interface Connection

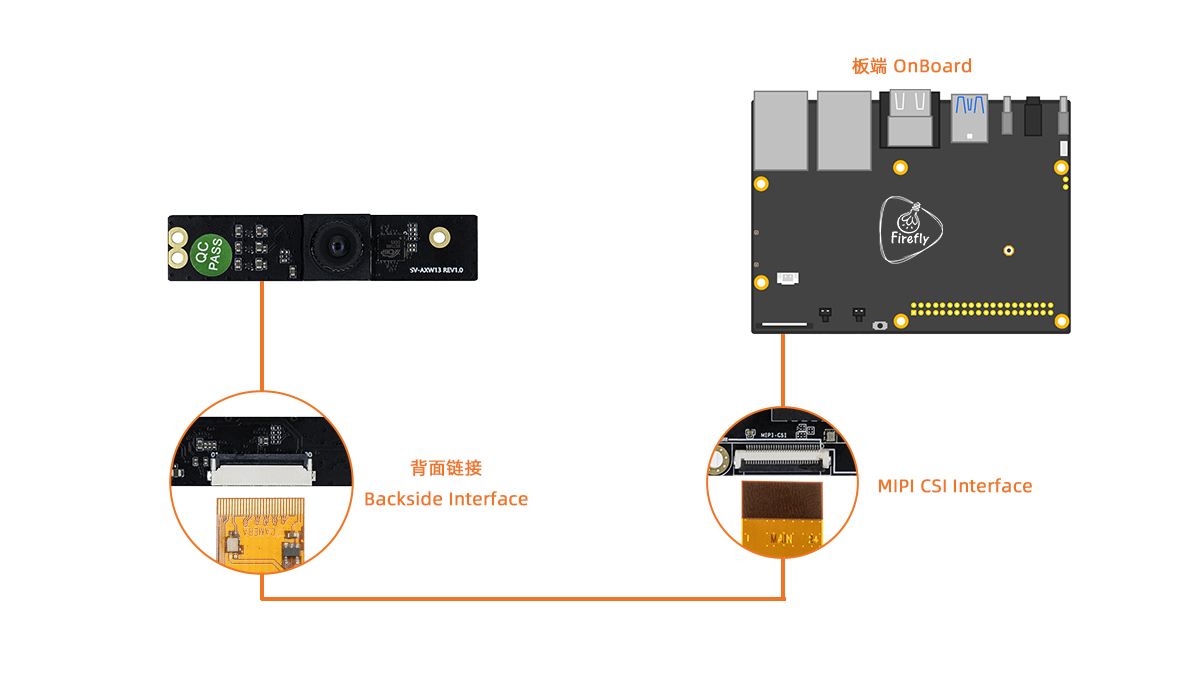

324pin MIPI CSI Interface Connection
Note: Do not connect to an interface with the words MIPI DSI as this may cause damage to the module or development board.
| CPU | Board |
|---|
| RK3399 | AIO-3399J, AIO-3399JD4, ROC-RK3399-PC-PLUS, ROC-RK3399-PC-Pro |
| RK3399Pro | AIO-3399ProC, AIO-3399Pro-JD4 |
| RK3566 | AIO-3566JD4, ROC-RK3566-PC |
| RK3568 | AIO-3568J, ROC-RK3568-PC, ROC-RK3568-PC SE |
| RK3588 | ITX-3588J,ROC-RK3588S-PC, AIO-3588SJD4: DPHY / DCPHY ,AIO-3588Q |
| RK3576 | ROC-RK3576-PC, AIO-3576-JD4，AIO-3576Q, AIO-3576C |
3. Firmware and Resource download
Related documents and firmware download, see the official website Resource Download
4. Tutorial
Flash firmware
| CPU | USB upgrade | SD upgrade |
|---|
| RK3399 | ROC-RK3399-PC-PLUS, AIO-3399JD4 AIO-3399J, ROC-RK3399-PC-Pro | ROC-RK3399-PC-PLUS, AIO-3399JD4 AIO-3399J, ROC-RK3399-PC-Pro |
| RK3399Pro | AIO-3399Pro-JD4, AIO-3399ProC | AIO-3399Pro-JD4, AIO-3399ProC |
| RK3566 | AIO-3566JD4, ROC-RK3566-PC | AIO-3566JD4, ROC-RK3566-PC |
| RK3568 | AIO-3568J, ROC-RK3568-PC, ROC-RK3568-PC SE | AIO-3568J, ROC-RK3568-PC, ROC-RK3568-PC SE |
| RK3588 | ITX-3588J, ROC-RK3588S-PC, AIO-3588SJD4,AIO-3588Q | ITX-3588J, ROC-RK3588S-PC, AIO-3588SJD4 ,AIO-3588Q |
| RK3576 | ROC-RK3576-PC, AIO-3576-JD4, AIO-3576Q | ROC-RK3576-PC, AIO-3576-JD4, AIO-3576Q, AIO-3576C |
Compile the firmware
| System | Board |
|---|
| Android12.0 | ITX-3588J,ROC-RK3588S-PC,AIO-3588SJD4,AIO-3588Q |
| Buildroot | ITX-3588J,ROC-RK3588S-PC,AIO-3588SJD4,AIO-3588Q,AIO-3588MQ,AIO-3588JQ |
| Ubuntu20.04 | ITX-3588J,ROC-RK3588S-PC,AIO-3588SJD4,AIO-3588Q,AIO-3588MQ,AIO-3588JQ |
| Debian11 | ITX-3588J,ROC-RK3588S-PC,AIO-3588SJD4,AIO-3588Q,AIO-3588MQ,AIO-3588JQ |
