OV13850 Camera Moudle(Out of production)​

Product Parameter​

  • Brand：Omnivision
  • Model：CMK-OV13850
  • Interface：MIPI
  • Pixels：1320W

Firmware follow​

CMK-OV13850 camera module is supported by default in public firmware.

Datasheet​

DataSheet and schematic of OV13850 Camera Module.

Picture​

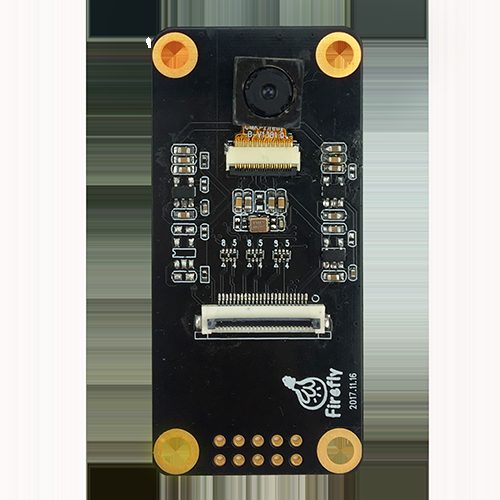

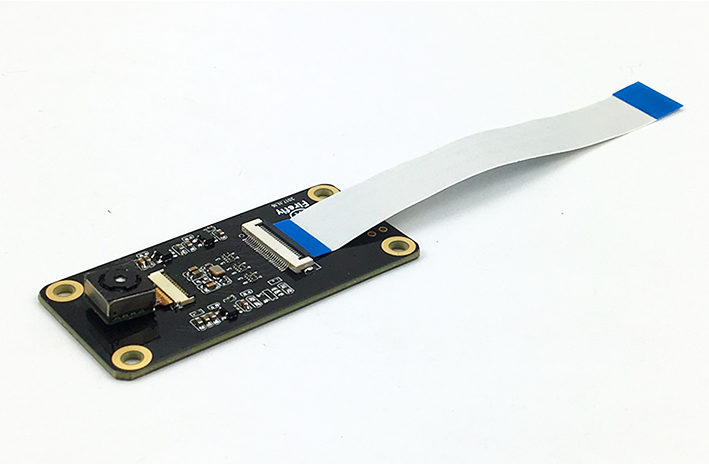

_images/module_camera_ov13850-1.jpg

_images/module_camera_ov13850-2.jpg

Connection Method​

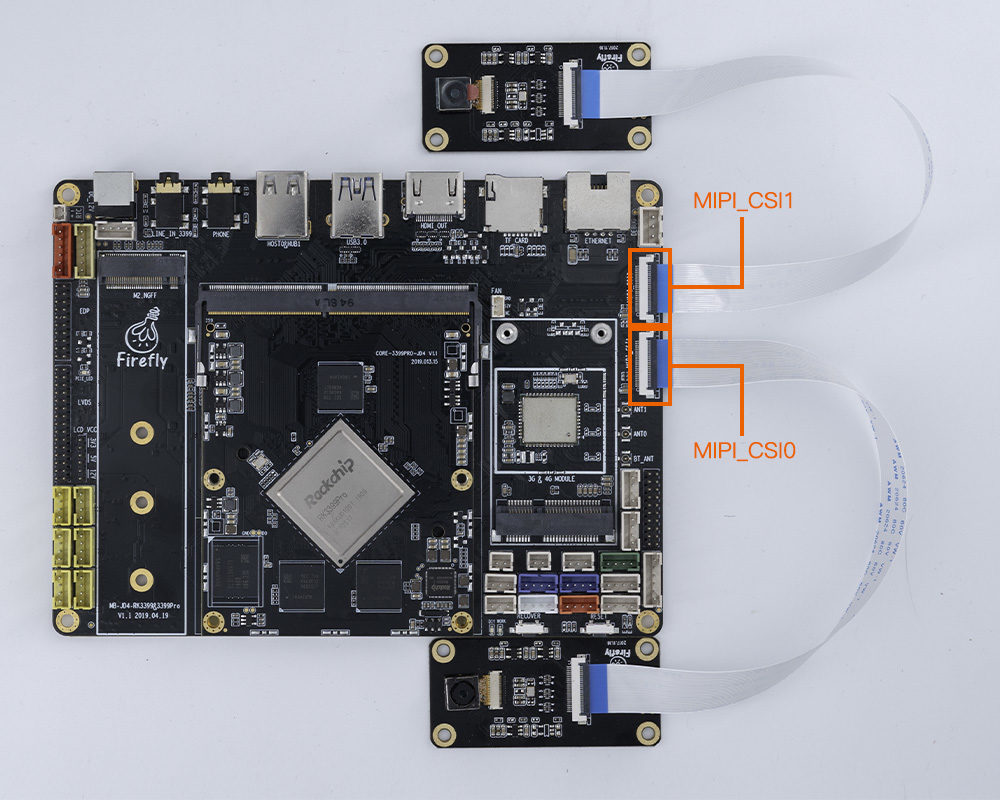

_images/module_camera_connection.jpg

Renderings​

_images/module_camera_photographs.png

CAM-8MS1M Monocular camera​

Product Parameter​

  • Brand：SV
  • ISP：XC7160
  • Sensor: SC8238
  • Interface: MIPI
  • Pixels: 800W(Currently only supports up to 1080P, 4K is still being adapted)

Reference firmware​

Public Fimware support CAM-8MS1M camera module by default. If it doesn’t work, please update the latest firmware.

Android 9.0 Download link

Physical map​

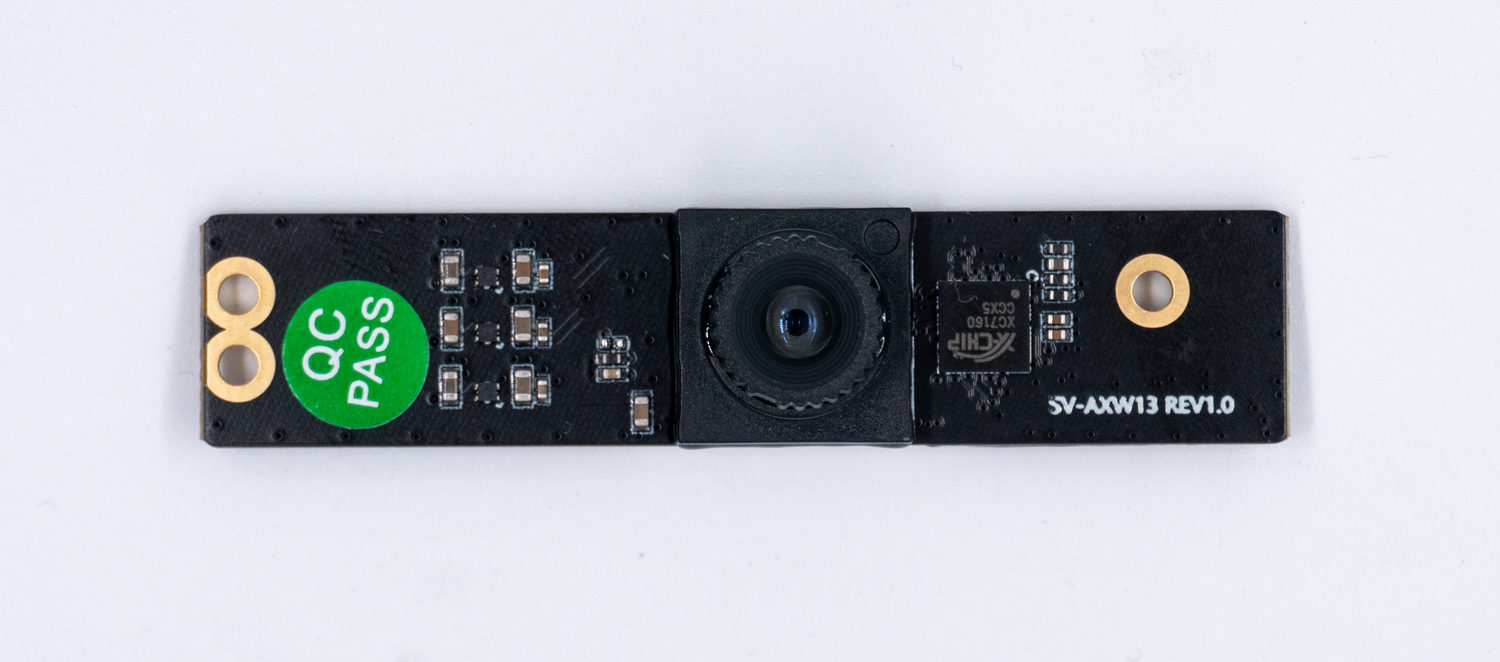

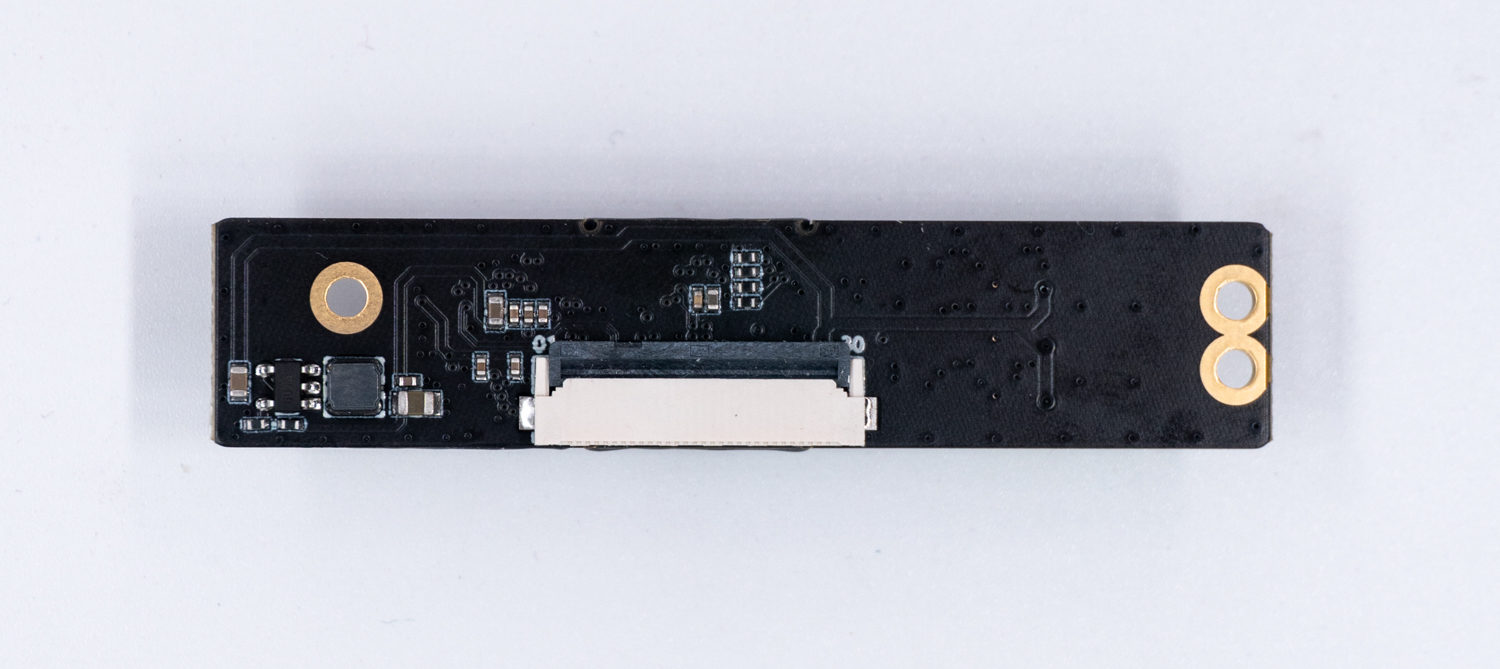

_images/cam_8ms1m_front.jpg _images/cam_8ms1m_back.jpg

Connection method​

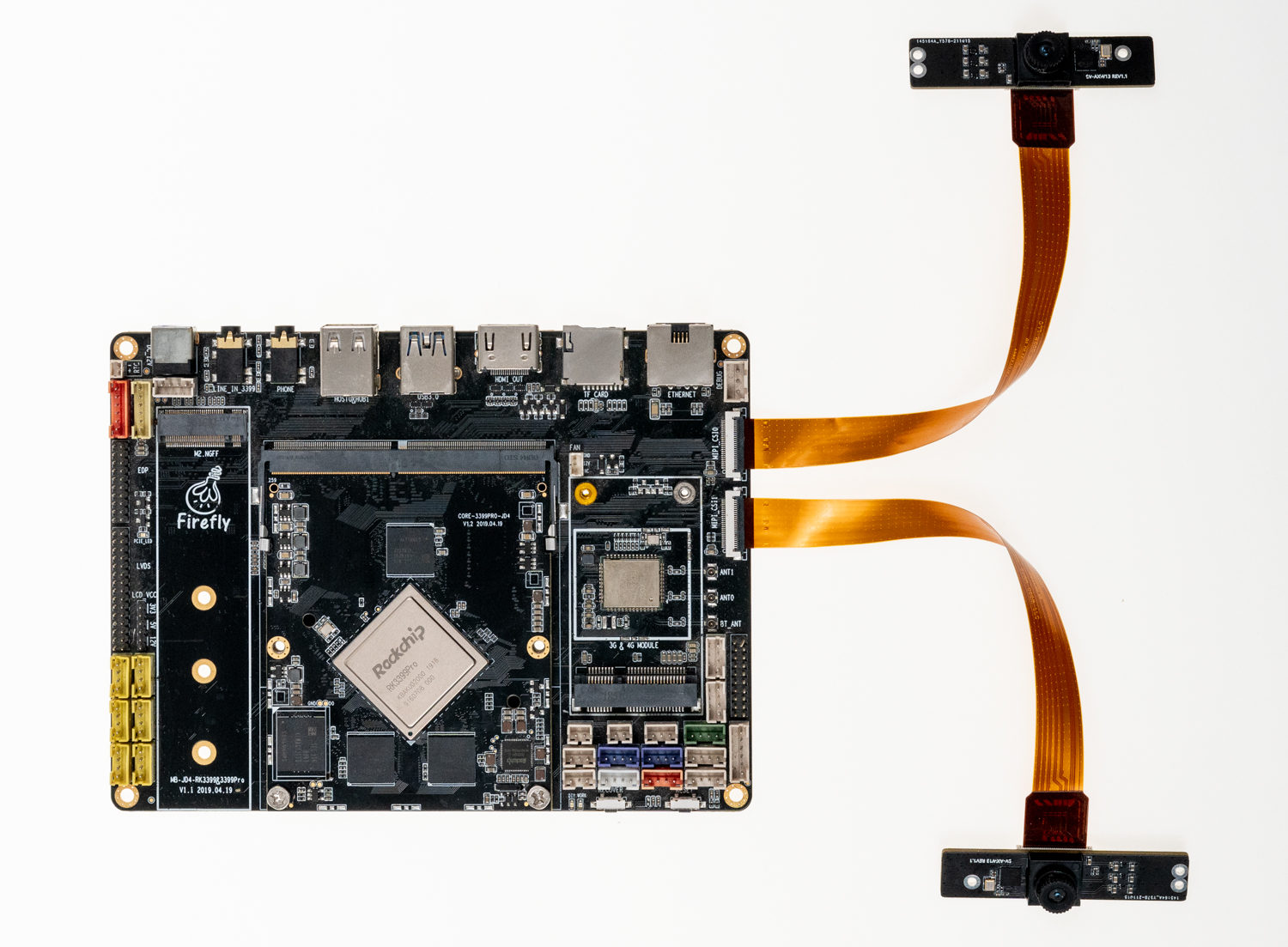

_images/aio_3399pro_jd4_8ms1m.jpg

Real pictures​

_images/camera_8ms1m_shoot.jpg

SV-TAYSH-TQ Camera module​

Product parameters​

  • Model：XC7022(RGB)/XC6130(IR)
  • Interface ：MIPI
  • Pixel ：200W

Patch​

kernel/arch/arm64/boot/dts/rockchip/rk3399pro-firefly-aiojd4.dtsi

        xc7160b: xc7160b@1b {
+                status = "disabled";
                reset-gpios = <&gpio1 RK_PC4 GPIO_ACTIVE_HIGH>;
        &#125;;
        xc7160f: xc7160f@1b &#123;
+                status = "disabled";
                reset-gpios = <&gpio1 RK_PC4 GPIO_ACTIVE_HIGH>;
        &#125;;

        XC7022b: XC7022b@1b&#123;
+                status = "okay";
                reset-gpios = <&gpio0 RK_PB5 GPIO_ACTIVE_HIGH>;
        &#125;;

        XC6130b: XC6130b@23&#123;
+                status = "okay";
                reset-gpios = <&gpio0 RK_PB5 GPIO_ACTIVE_HIGH>;
        &#125;;

Modify the above patch and complie kernel, then reboot after upgrading boot.img.

Physical map​

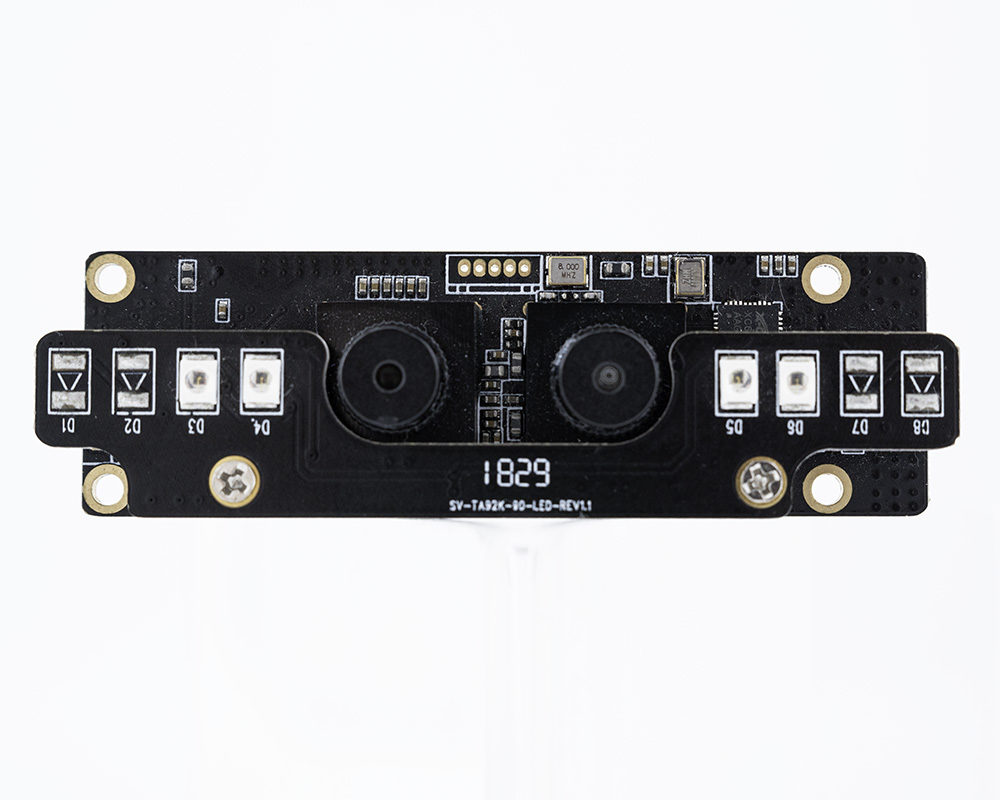

_images/camera_SV-TAYSH-TQ.jpg

Connection method​

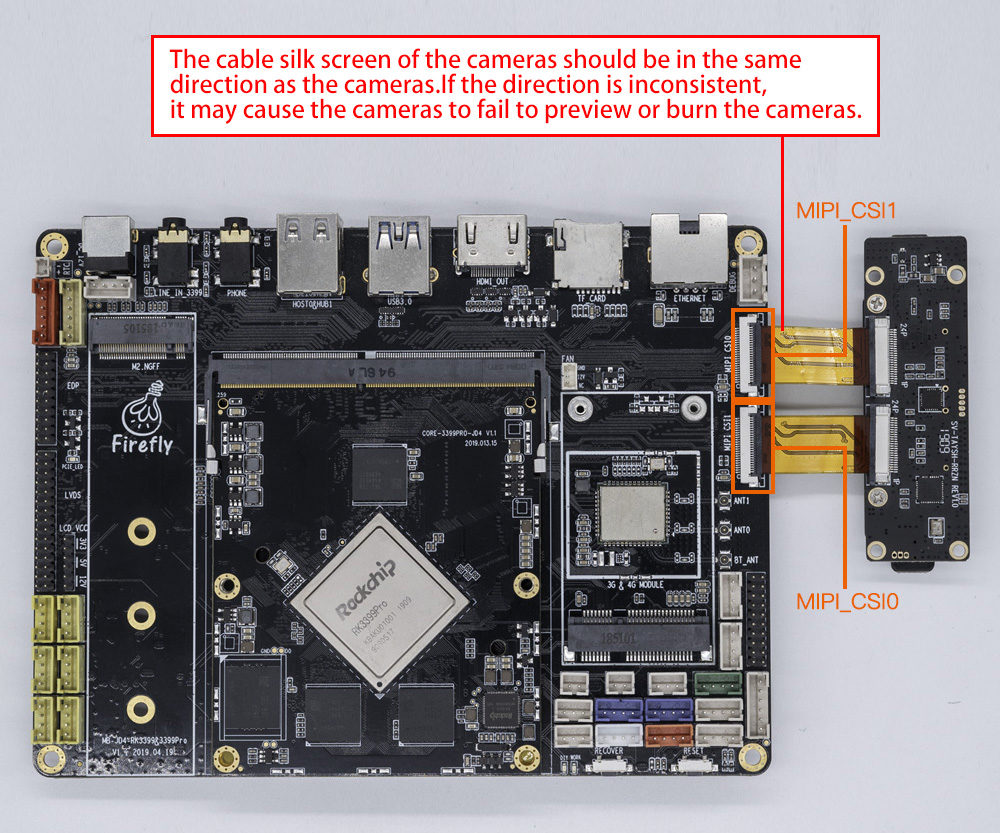

_images/camera_SV-TAYSH-TQ_connect.en.jpg

Real pictures​

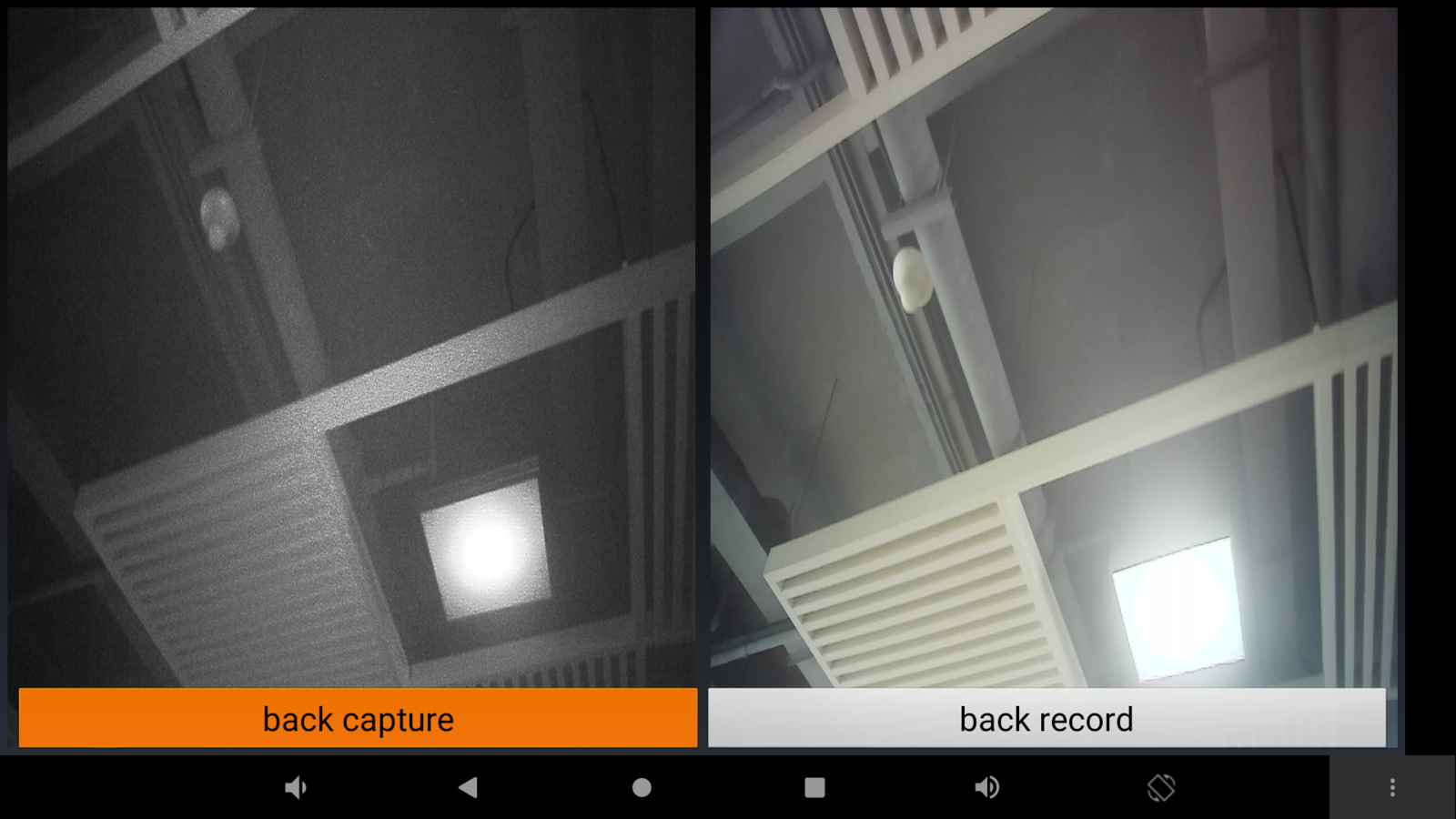

_images/camera_SV-TAYSH-TQ_shoot.png
