4.1. EC20 4G module suit​

4.1.1. Product parameters​

  • Model

    • EC20-C R2.0 Mini PCIe-C

  • Voltage

    • 3.3V~ 3.6V, Typical value: 3.3V

  • Working frequency

    • TDD-LTE: B38/B39/B40/B41
    • FDD-LTE: B1/B3/B8
    • WCDMA: B1/B8
    • TD-SCDMA: B34/B39
    • GSM: 900/1800

  • Data transmission

    • TDD-LTE： Max 130Mbps (DL) Max 35Mbps (UL)
    • FDD-LTE： Max 150Mbps (DL) Max 50Mbps (UL)
    • DC-HSPA+： Max 42Mbps (DL) Max 5.76Mbps (UL)
    • UMTS： Max 384Kbps (DL) Max 384Kbps (UL)
    • TD-SCDMA： Max 4.2Mbps (DL) Max 2.2Mbps (UL)
    • CDMA： Max 3.1Mbps (DL) Max 1.8Mbps (UL)
    • EDGE： Max 236.8Kbps (DL) Max 236.8Kbps (UL)
    • GPRS： Max 85.6Kbps (DL) Max 85.6Kbps (UL)

  • Interface connector

    • USB：USB 2.0 high-speed interface, 480Mbps
    • Digital voice: Digital voice interface ×1 (optional)
    • USIM：1.8V/3V
    • Internet indicator: ×2, NET_STATUS and NET_MODE
    • UART：×1 UART
    • Reset: low level
    • PWRKEY：low level
    • Antenna interface: ×3 (Main antenna, diversity antenna and GNSS antenna interface)
    • ADC：×2

  • Size

    • 51.0mm × 30.0mm × 4.9mm

  • Weight

    • About 10.5g

  • Certification

    • CCC/ NAL*/ TA

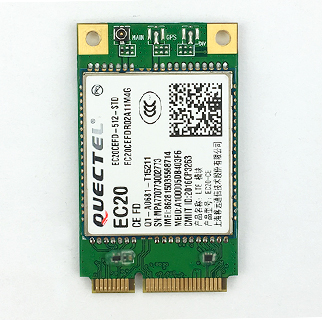

4.1.2. Image​

_images/module_wireless_ec20_1.png

4.1.3. Connection method​

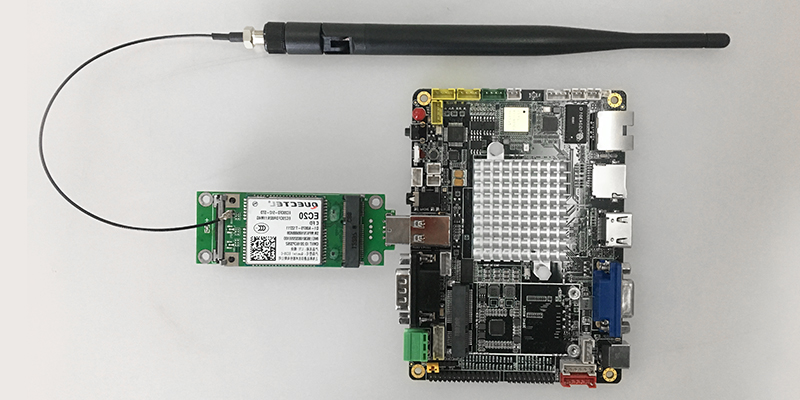

  • USB interface connection

_images/module_wireless_ec20_2.png

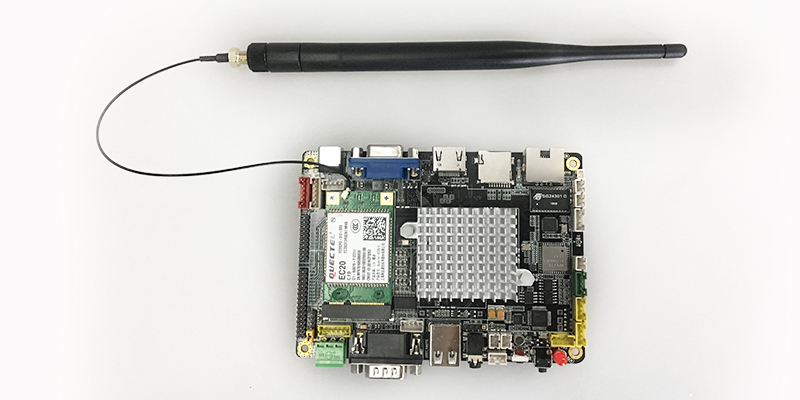

  • Mini-PCIe interface connection

_images/module_wireless_ec20_3.png

4.1.4. Reference firmware​

The public-version firmware supports EC20 4G module by default.
